Product Name:

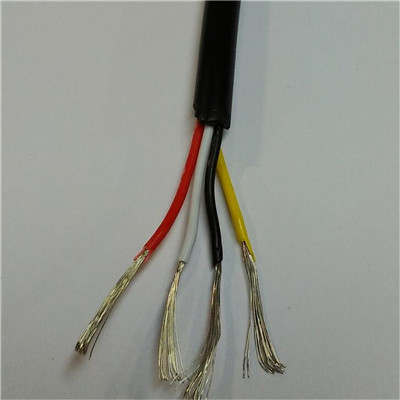

AFPF Telfon HIGH TEMPERATURE CABLE
Number :
 |
Jacket:FEP/PFA Telfon
Insulator:FEP/PFA Telfon
Conductor:Tinned or Silver Copper
Temperature Range:-60℃~+200℃/250℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green
Used for temperature sensors, aviation, electric machinery,power plant etc.
|
Core Section (mm2) |
Conductor Construction |
Insulation |
Jacket |
Max.Conductor Resistance DC20℃ |
||
|
|
|
Thickness |
Outer Diameter |
Thickness |
Outer Diameter |
|
|
1×0.12 |
7/0.15 |
0.20 |
0.85 |
0.20 |
1.70 |
150 |
|
1×0.2 |
7/0.20 |
0.20 |
1.0 |
0.20 |
1.90 |
83.5 |
|
2×0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.70 |
150 |
|
3×0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.70 |
150 |
|
4×0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
3.0 |
150 |
|
2×0.2 |
7/0.20 |
0.20 |
1.0 |
0.25 |
2.90 |
83.5 |
|
3×0.2 |
7/0.20 |
0.20 |
1.0 |
0.25 |
3.00 |
83.5 |
|
4×0.2 |
7/0.20 |
0.20 |
1.0 |
0.30 |
3.50 |
83.5 |
|
2×0.35 |
19/0.16 |
0.25 |
1.30 |
0.25 |
3.50 |
49.5 |
|
3×0.35 |
19/0.16 |
0.25 |
1.30 |
0.25 |
3.60 |
49.5 |
|
4×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
4.25 |
49.5 |
|
2×0.5 |
19/0.18 |
0.25 |
1.40 |
0.25 |
3.80 |
36.0 |
|
3×0.5 |
19/0.18 |
0.25 |
1.40 |
0.25 |
3.90 |
36.0 |
|
4×0.5 |
19/0.18 |
0.25 |
1.40 |
0.30 |
4.60 |
36.0 |
|
2×0.75 |
19/0.23 |
0.25 |
1.70 |
0.30 |
4.60 |
22.7 |
|
3×0.75 |
19/0.23 |
0.25 |
1.70 |
0.40 |
4.80 |
22.7 |
|
4×0.75 |
19/0.23 |
0.25 |
1.70 |
0.40 |
5.50 |
22.7 |
|
2×1 |
19/0.26 |
0.25 |
1.80 |
0.30 |
4.70 |
19 |
|
3×1 |
19/0.26 |
0.25 |
1.80 |
0.35 |
4.80 |
19 |
|
4×1 |
19/0.26 |
0.25 |
1.80 |
0.40 |
5.60 |
19 |
|
2×1.5 |
19/0.32 |
0.30 |
2.25 |
0.40 |
5.80 |
11.7 |
|
3×1.5 |
19/0.32 |
0.30 |
2.25 |
0.40 |
6.0 |
11.7 |
|
4×1.5 |
19/0.32 |
0.30 |
2.25 |
0.40 |
6.80 |
11.7 |
