Product Name:

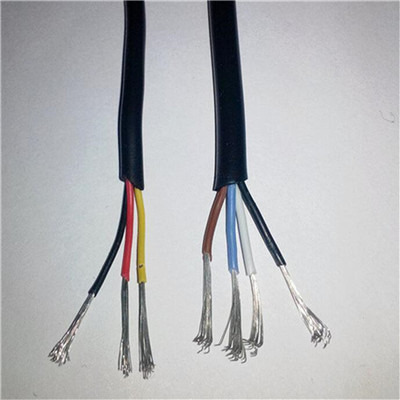

YGZF/YGZFP Telfon SILICONE INSTRUCTION JACKET WIRE
Number :
 |
Jacket:Silicone Rubber
Insulator: Silicone Rubber
Conductor:Tinned Copper
Temperature Range:-60℃~+200℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green
Be Used all kinds of moving dynamo,power station, pertrochemical industry on
high temperature condition and rated voltage of alternating current is
300V/500V and below.
|
Core number ×Section (㎜²) |
Conductor Construction |
Insulation Thickness (mm) |
Outer Diameter (mm) |
Jacket |
Outer Diameter (mm) |
Max. Resistance DC20℃ (Ω/㎞) |
|
2×0.35 |
19/0.16 |
0.25 |
1.30 |
0.80 |
4.20 |
53.1 |
|
3×0.35 |
19/0.16 |
0.25 |
1.30 |
1.10 |
5.0 |
53.1 |
|
4×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
5.50 |
53.1 |
|
5×0.35 |
19/0.16 |
0.25 |
1.30 |
1.30 |
6.20 |
53.1 |
|
6×0.35 |
19/0.16 |
0.25 |
1.30 |
1.40 |
6.80 |
53.1 |
|
7×0.35 |
19/0.16 |
0.25 |
1.30 |
1.40 |
6.80 |
53.1 |
|
2×0.5 |
19/0.18 |
0.25 |
1.40 |
1.20 |
5.20 |
40.1 |
|
3×0.5 |
19/0.18 |
0.25 |
1.40 |
1.20 |
5.50 |
40.1 |
|
4×0.5 |
19/0.18 |
0.25 |
1.40 |
1.40 |
6.20 |
40.1 |
|
5×0.5 |
19/0.18 |
0.25 |
1.40 |
1.40 |
6.60 |
40.1 |
|
6×0.5 |
19/0.18 |
0.25 |
1.40 |
1.40 |
7.0 |
40.1 |
|
7×0.5 |
19/0.18 |
0.25 |
1.40 |
1.40 |
7.0 |
40.1 |
|
2×0.75 |
19/0.23 |
0.25 |
1.70 |
1.10 |
5.60 |
24.60 |
|
3×0.75 |
19/0.23 |
0.25 |
1.70 |
1.40 |
6.50 |
24.60 |
|
4×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
7.20 |
24.60 |
|
5×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
7.60 |
24.60 |
|
6×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
8.10 |
24.60 |
|
7×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
8.10 |
24.60 |
|
2×1 |
19/0.26 |
0.25 |
1.80 |
1.20 |
6.0 |
20.4 |
|
3×1 |
19/0.26 |
0.25 |
1.80 |
1.20 |
6.20 |
20.4 |
|
4×1 |
19/0.26 |
0.25 |
1.80 |
1.20 |
6.80 |
20.4 |
|
5×1 |
19/0.26 |
0.25 |
1.80 |
1.40 |
7.60 |
20.4 |
|
6×1 |
19/0.26 |
0.25 |
1.80 |
1.40 |
8.20 |
20.4 |
|
7×1 |
19/0.26 |
0.25 |
1.80 |
1.40 |
8.20 |
20.4 |
