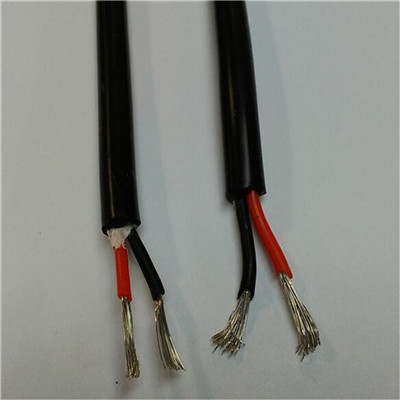

YGZB MULTI-CORE HIGH TEMPERATURE CABLE
 |
Product Name:
YGZB MULTI-CORE HIGH TEMPERATURE CABLE
Number :
 |
Product Description:
TECHNICAL DATA
Jacket:Silicone Rubber
Insulator: Silicone Rubber
Conductor:Tinned Copper
Temperature Range:-60℃~+200℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green
Be Used all kinds of moving dynamo,power station, pertrochemical industry on high temperature condition and rated voltage of alternating
current is 450V/750V and below.
|
Core
number ×Section
(mm2)
|
Conductor
Construction
|
Insulation
Thickness
(mm)
|
Outer
Diameter
(mm)
|
Jacket Thickness
(mm) |
Outer
Diameter
(mm)
|
Max.
Conductor Resistance
DC20℃（Ω/㎞)
|
||
|
|
|
COPPER WIRE
|
TINNED COPPER
WIRE |
|||||
|
3×4
|
56/0.30
|
0.8
|
4.3
|
18
|
16.5×7.9
|
±0.50
|
4.95
|
5.09
|
|
3×6
|
84/0.30
|
0.8
|
4.9
|
20
|
18.7×8.9
|
±0.50
|
3.30
|
3.39
|
|
3×10
|
84/0.40
|
1.0
|
6.6
|
25
|
24.8×11.6
|
±0.60
|
1.91
|
1.95
|
|
3×16
|
126/0.40
|
1.2
|
8.2
|
28
|
30.2×13.8
|
±0.80
|
1.21
|
1.24
|
|
3×25
|
196/0.40
|
1.4
|
10.1
|
30
|
36.3×16.1
|
±0.80
|
0.78
|
0.795
|
|
3×35
|
276/0.40
|
1.4
|
11.4
|
32
|
40.6×17.8
|
±1.0
|
0.554
|
0.565
|
|
3×50
|
396/0.40
|
1.6
|
13.9
|
35
|
48.7×20.9
|
±1.0
|
0.386
|
0.393
|
|
3×70
|
360/0.50
|
1.6
|
15.6
|
38
|
54.4×23.2
|
±1.0
|
0.272
|
0.277
|
|
3×95
|
475/0.50
|
1.8
|
18.1
|
40
|
62.3×26.1
|
±1.2
|
0.206
|
0.210
|
|
3×120
|
608/0.50
|
2.0
|
20.0
|
45
|
69×29
|
±1.5
|
0.161
|
0.164
|
|
3×150
|
756/0.50
|
2.2
|
22.4
|
48
|
76.8×32
|
±1.5
|
0.129
|
0.132
|
|
3×185
|
925/0.50
|
2.4
|
24.8
|
52
|
84.8×35.2
|
±2.0
|
0.106
|
0.108
|
|
3×240
|
1221/0.50
|
2.6
|
28.2
|
55
|
95.6×39.2
|
±2.0
|
0.0801
|
0.082
|
