Product Name:

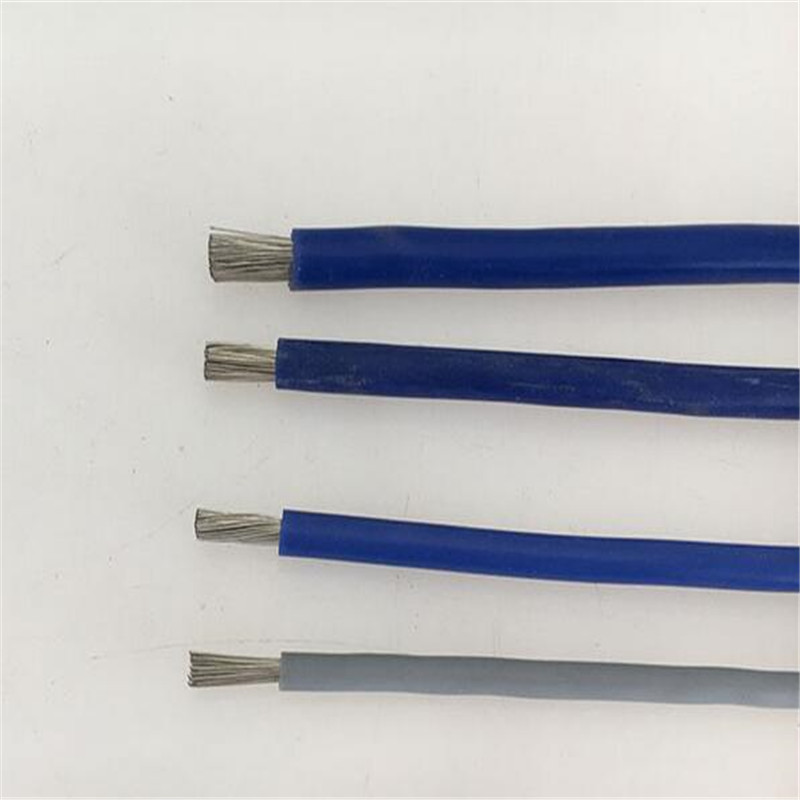

AFFB TEFLON HIGH TEMPERATURE WIRE
Number :
 |
Jacket:FEP/PFA Telfon
Insulator:FEP/PFA Telfon
Conductor:Tinned or Silver Copper
Temperature Range:-60℃~+200℃/250℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green
Used at AC rated voltage 300V/500V or below with various movable electric
machines,steel plant,aviation,power plant pertrochemical industry and outdoor lighting
of high temperature area.
|
Core number Section (㎜²) |
Conductor Construction |
Insulation(mm) |
Jacket(mm） |
Max.Conductor Resistance DC20℃(Ω/㎞) |
||
|
|
|
Thickness |
Outer Diameter |
Thickness |
Outer Diameter |
|
|
2×0.03 |
1/0.20 |
0.10 |
0.40 |
0.15 |
0.7*1.1 |
560 |
|
2×0.05 |
1/0.25 |
0.10 |
0.45 |
0.15 |
0.75*1.20 |
386.9 |
|
2×0.07 |
1/0.30 |
0.15 |
0.60 |
0.25 |
1.10*1.70 |
245 |
|
2×0.12 |
1/0.40 |
0.20 |
0.80 |
0.20 |
1.20*2.0 |
146.9 |
|
2×0.2 |
1/0.50 |
0.25 |
1.0 |
0.25 |
1.50*2.50 |
94 |
|
2×0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
1.40*2.20 |
150 |
|
3×0.12 |
7/0.15 |
0.20 |
0.85 |
0.30 |
1.45*3.20 |
150 |
|
4×0.12 |
7/0.15 |
0.20 |
0.85 |
0.30 |
1.45*4.0 |
150 |
|
2×0.2 |
7/0.20 |
0.15 |
0.90 |
0.25 |
1.40*2.30 |
83.5 |
|
3×0.2 |
7/0.20 |
0.15 |
0.90 |
0.30 |
1.40*3.30 |
83.5 |
|
4×0.2 |
7/0.20 |
0.15 |
0.90 |
0.30 |
1.40*4.20 |
83.5 |
|
2×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
1.90*3.20 |
49.5 |
|
3×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
1.90*4.50 |
49.5 |
|
2×0.5 |
19/0.18 |
0.25 |
1.40 |
0.25 |
1.90*3.30 |
36.0 |
|
3×0.5 |
19/0.18 |
0.25 |
1.40 |
0.30 |
2.0*4.80 |
36.0 |
|
2×0.75 |
19/0.23 |
0.25 |
1.70 |
0.30 |
2.30*4.0 |
22.7 |
|
2×1 |
19/0.26 |
0.25 |
1.80 |
0.30 |
2.40*4.20 |
19 |
|
2×1.5 |
19/0.32 |
0.30 |
2.25 |
0.30 |
2.85*5.10 |
11.7 |
|
2×2.5 |
19/0.41 |
0.40 |
2.80 |
0.40 |
3.60*6.40 |
6.86 |
