Product Name:

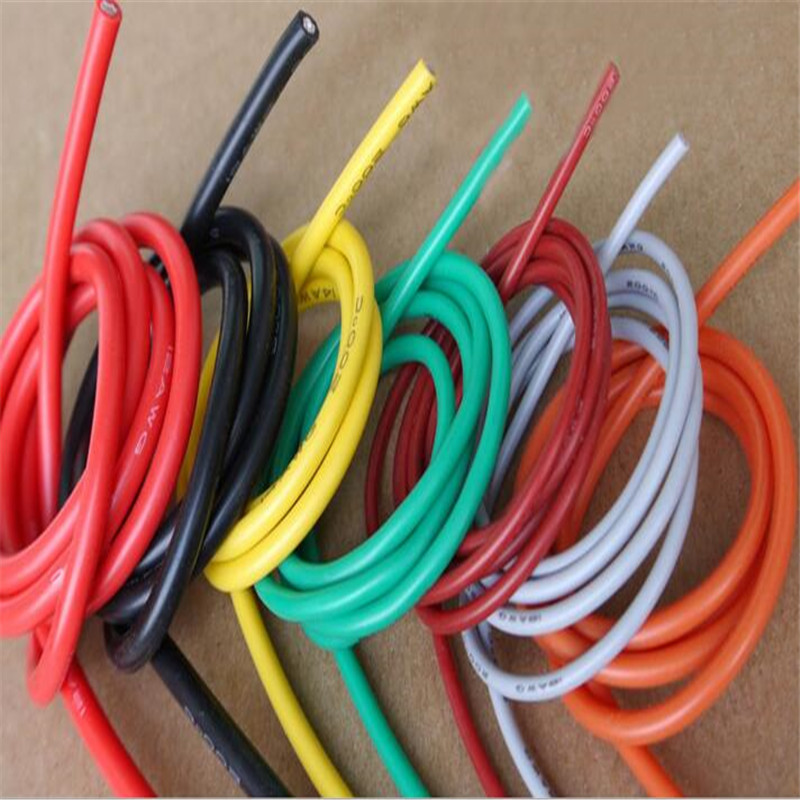

AFF TEFLON HIGH TEMPERATURE WIRE
Number :
 |
Jacket:FEP/PFA Teflon
Insulator:FEP/PFA Teflon
Conductor:Tinned or Silver Copper
Temperature Range:-60℃~+200℃/250℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green
Used at AC rated voltage 300V/500V or below with various movable electric
machines,steel plant,aviation,power plant pertrochemical industry and outdoor lighting of high temperature area.
AFF TEFLON HIGH TEMPERATURE WIRE
|
Corenumber Section (㎜²) |
Conductor Construction |
Insulation(mm) |
Jacket(mm） |
Max.Conductor Resistance DC20℃(Ω/㎞) |
||
|
Thickness |
Outer Diameter |
Thickness |
Outer Diameter |
|||
|
2×0.35 |
19/0.16 |
0.25 |
1.30 |
0.25 |
3.10 |
49.5 |
|
3×0.35 |
19/0.16 |
0.25 |
1.30 |
0.25 |
3.20 |
49.5 |
|
4×0.35 |
19/0.16 |
0.25 |
1.30 |
0.25 |
3.65 |
49.5 |
|
5×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
4.10 |
49.5 |
|
6×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
4.50 |
49.5 |
|
7×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
4.50 |
49.5 |
|
2×0.5 |
19/0.18 |
0.25 |
1.40 |
0.25 |
3.30 |
36.0 |
|
3×0.5 |
19/0.18 |
0.25 |
1.40 |
0.25 |
3.40 |
36.0 |
|
4×0.5 |
19/0.18 |
0.25 |
1.40 |
0.30 |
4.0 |
36.0 |
|
5×0.5 |
19/0.18 |
0.25 |
1.40 |
0.30 |
4.40 |
36.0 |
|
6×0.5 |
19/0.18 |
0.25 |
1.40 |
0.30 |
4.80 |
36.0 |
|
7×0.5 |
19/0.18 |
0.25 |
1.40 |
0.30 |
4.80 |
36.0 |
|
2×0.75 |
19/0.23 |
0.25 |
1.70 |
0.30 |
4.0 |
22.7 |
|
3×0.75 |
19/0.23 |
0.25 |
1.70 |
0.30 |
4.0 |
22.7 |
|
4×0.75 |
19/0.23 |
0.25 |
1.70 |
0.30 |
4.70 |
22.7 |
|
5×0.75 |
19/0.23 |
0.25 |
1.70 |
0.35 |
5.30 |
22.7 |
|
6×0.75 |
19/0.23 |
0.25 |
1.70 |
0.35 |
5.80 |
22.7 |
|
7×0.75 |
19/0.23 |
0.25 |
1.70 |
0.35 |
5.80 |
22.7 |
|
2×1 |
19/0.26 |
0.25 |
1.80 |
0.30 |
4.20 |
19.0 |
|
3×1 |
19/0.26 |
0.25 |
1.80 |
0.35 |
4.30 |
19.0 |
|
4×1 |
19/0.26 |
0.25 |
1.80 |
0.35 |
5.10 |
19.0 |
|
5×1 |
19/0.26 |
0.25 |
1.80 |
0.35 |
5.60 |
19.0 |
|
6×1 |
19/0.26 |
0.25 |
1.80 |
0.40 |
6.20 |
19.0 |
|
7×1 |
19/0.26 |
0.25 |
1.80 |
0.40 |
6.20 |
19.0 |
|
2×1.5 |
19/0.32 |
0.30 |
2.25 |
0.35 |
5.20 |
11.7 |
|
3×1.5 |
19/0.32 |
0.30 |
2.25 |
0.35 |
5.30 |
11.7 |
|
4×1.5 |
19/0.32 |
0.30 |
2.25 |
0.40 |
6.20 |
11.7 |
|
5×1.5 |
19/0.32 |
0.30 |
2.25 |
0.40 |
6.80 |
11.7 |
|
6×1.5 |
19/0.32 |
0.30 |
2.25 |
0.40 |
7.50 |
11.7 |
|
7×1.5 |
19/0.32 |
0.30 |
2.25 |
0.40 |
7.60 |
11.7 |
