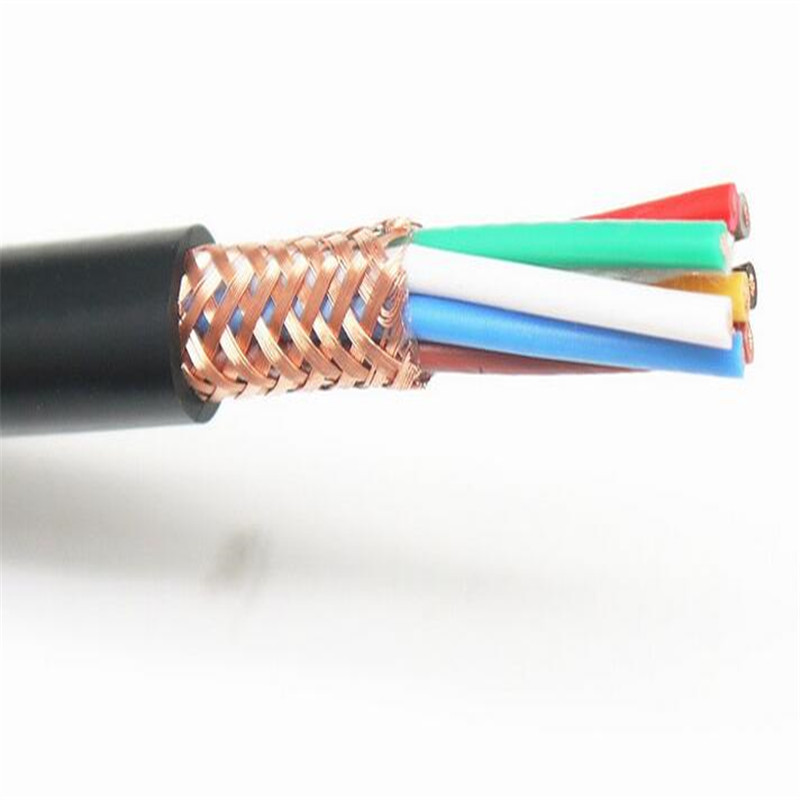

Copper Conductor PVC Insulated PVC Sheathed Braid Screened Rigid Control Cable(KVVP) is mainly used for system connection wire of control,
signal,protection or measuring for rated voltage up to and including 450/750V.

2,BASIC INFORMATION

Code Name

KVVP

Rated Voltage (Uo/U)

450/750V

Cable Structure

CU/PVC Insulation/Braid Screened/PVC Sheathed

3,CONSTRUCTION

Conductor

Preferred Number of cores:

2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52,61

The conductors shall comply with the requirement given in IEC 60228 for class 1 or 2.

- class 1 for solid conductors;

- class 2 for stranded conductors.

Insulation

PVC(Polyvinyl Chloride) Type PVC/A according to IEC

Metallic Screened

Copper Wire Braid

Sheathed

PVC(Polyvinyl Chloride) Type PVC/ST1 according to IEC

Other special application cable can be provided upon requests:

Fire-resistant,Flame-retardant,Low-halogen,Non-halogen,Low-fume,Low-smoke,as well as acid-alkali-proof,High temperature resistant,
Termite and Rodent resistant,Water proof series and so on.

4,CABLE  STANDARDS

GB/T,JB/T,IEC,BS,DIN,ICEA up on request.

5,CHARACTERISTICS

Conductor temperature

Maximum conductor temperature in normal use: 70ºC

Installation temperature

Ambient temperature under installation shall not be below 0ºC

Max.temperature of conductor under short circuit

-(Max.Duration 5 sec.)

PVC Insulated:160ºC

Preferred Permissible bending radius

For non-armoured PVC insulated cable not less than: 6 times of cable diameter
