Product Name:

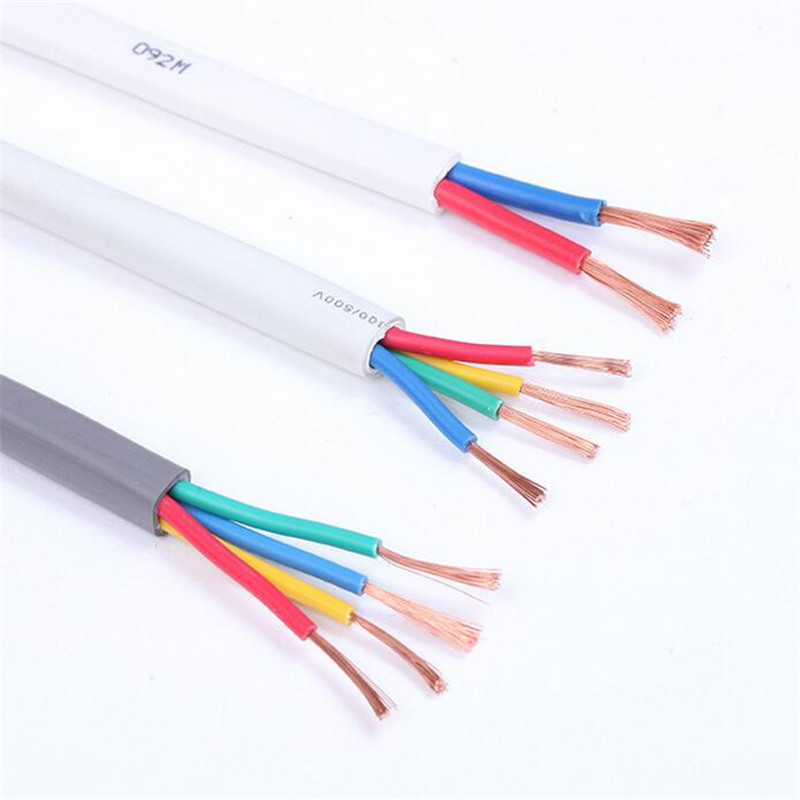

2.5mm2 PVC Insulation Electrical Flexible copper Wiring Cable
Number :
 |
Standard: This product is manufactured according to GB9330-88 standard. The low smoke low halogen flame retardant
or low smoke zero halogen flame retardant control cable is manufactured according to the enterprise standard. The flame
retardant property meets the requirements of GB / T17651 and GB / T17650. Flame-retardant control cables manufactured
in accordance with corporate standards, flame retardant properties in line with GB / T18380.3 requirements.
Product Features:
1, rated voltage: 450 / 750V and below
2, the working temperature: ordinary type does not exceed 70 ℃, flame retardant does not exceed 105 ℃
3, conductor: stranded oxygen-free copper wire
4, shielding: oxygen-free copper wire
5, Insulation: PVC
6, sheath: PVC
7, Color: Black
Use range:
Laying in the indoor movement requirements of soft, shielding occasions.
Features / Uses:
This product is suitable for metallurgy, power, petrochemical and other industrial and mining enterprises in the exchange
rated voltage 450 / 750V and below electrical instrumentation, power distribution equipment, signal transmission, control
and measurement systems.
2.5mm2 PVC Insulation Electrical Flexible copper Wiring Cable
|
Core number*nominal cross section of conductor |
Max diameter of conductor in a line |
insulator thickness |
Shielded wire diameter |
sheath thickness |
average overall diameter |
Min insulation resistance |
| 7×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 8.2 | 0.014 |
| 7×0.4 | 0.16 | 0.5 | 0.15 | 0.8 | 9.2 | 0.013 |
| *7×0.5 | 0.21 | 0.5 | 0.15 | 0.8 | 9.3 | 0.012 |
| *7×0.75 | 0.21 | 0.5 | 0.15 | 0.8 | 10 | 0.01 |
| *7×1 | 0.21 | 0.6 | 0.15 | 1 | 11.8 | 0.01 |
| *7×1.5 | 0.26 | 0.6 | 0.2 | 1 | 12.7 | 0.009 |
| *7×2.5 | 0.26 | 0.7 | 0.2 | 1 | 14.8 | 0.008 |
