Product Name:

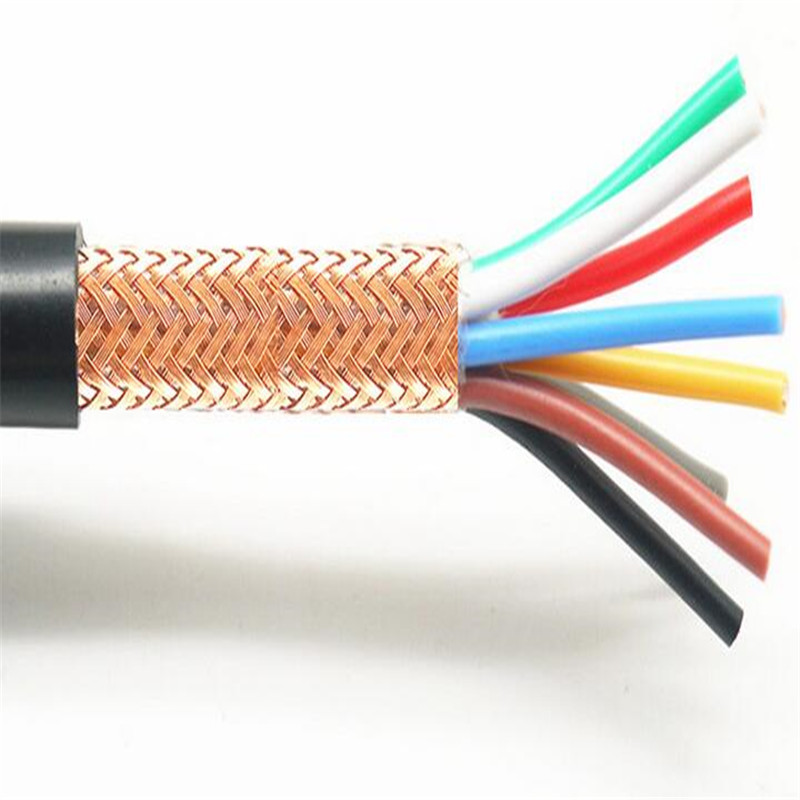

Copper Wire Braided Shielded PVC Sheathed Control Cable
Number :
 |
* PVC Control Cable
* Conductor:Copper
* Insulation:PVC,XLPE
* Sheath:Fire Resistance PVC
* Certificate:IEC ,ISO9001-2000, ISO14001, OHSAS18001,SAA
* Standard: IEC, BS, ASTM, DIN, AS/NZS And So On.
PVC Control Cable
PVC Insulated Sheath Control Cable(Sheathed Control Cable,Insulated Sheath Control Cable)
The Rated Voltage Is 450/750V And Under 450/750V. The XLPE Can Be Used In The Place Of 0.6/1KV.
1. The Long-Term Working Temperature: PVC And PE Insulated Should Not Be Above 70, XLPE Insulated Should Not Be Above 90.
2. The Laying Temperature Should Not Be Above -20.
3.The bending Radius Of Cable: Non Armoured Cable, Should Not Be Lessthan 6Times.
Armoured Or Copper Tape Screen Should Not Be Less Than 12Times.The Soft Screen Cable Should Not Be Less Than 6 Times.
OEM ODM Copper Wire Braided Shielded PVC Sheathed Control Cable
|
Model,Name And Application |
|
KVV Copper Conductor PVC Insulated And Sheated Control Cable |
|
For laying Indoors, In Trenches And In Ducsts, For Fixed Installation. |
|
KVVP Copper Conductor PVC Insulated And Sgeated Control Cable With Steel Tape Armomour |
|
For Laying Thdoom, In Trenches And In Ducts, For Fixed Installation |
|
KVVP3 Copper Conductor PVC Insulated And Sheathed Control Cable Withsteel Tape Armmour |
|
For Laying Thdoom, In Trenches And Inducats,For Fixed Installation. |
|
KVV2 Copper Conductor PVCinsulated Flesible Control Cable |
|
For Laying Indoors, In Trenchesand In Ducts And In Ground, Abke To Withstand Heavier Mechanical Force,And For Fixed Installation. |
|
KVVR Copper Conductor PVC Insulated Flesible Control Cable |
|
For Laying Indoors, Movable Arid Flexible |
|
ZR-KVVRP Copper Conductor PVC Insulated &Sheated Copper Wire Control Cable |
|
For Laying Indoors ,With Capability Ofmoving Aried Screening |
|
ZR-KVVR2 Copper Conductor PVCinsulated And Sheathed Flame Retardant Control Cable |
|
For Laying indoors, In Ducts And For Fixed Installation,Tim Cable Should Be Flame retardance |
OEM ODM Copper Wire Braided Shielded PVC Sheathed Control Cable
|
Core number*nominal cross section of conductor |
Max diameter of conductor in a line |
insulator thickness |
Shielded wire diameter |
sheath thickness |
average overall diameter |
Min i nsulation resistance |
| 5×0.3 | 0.16 | 0.5 | 0.15 | 0.6 | 7.6 | 0.014 |
| 5×0.4 | 0.16 | 0.5 | 0.15 | 0.6 | 8.1 | 0.013 |
| *5×0.5 | 0.21 | 0.5 | 0.15 | 0.8 | 8.7 | 0.012 |
| *5×0.75 | 0.21 | 0.5 | 0.15 | 0.8 | 9.4 | 0.01 |
| *5×1 | 0.21 | 0.6 | 0.15 | 1 | 11.1 | 0.01 |
| *5×1.5 | 0.26 | 0.6 | 0.2 | 1 | 11.9 | 0.009 |
| *5×2.5 | 0.26 | 0.7 | 0.2 | 1 | 13.8 | 0.008 |
