Product Name:

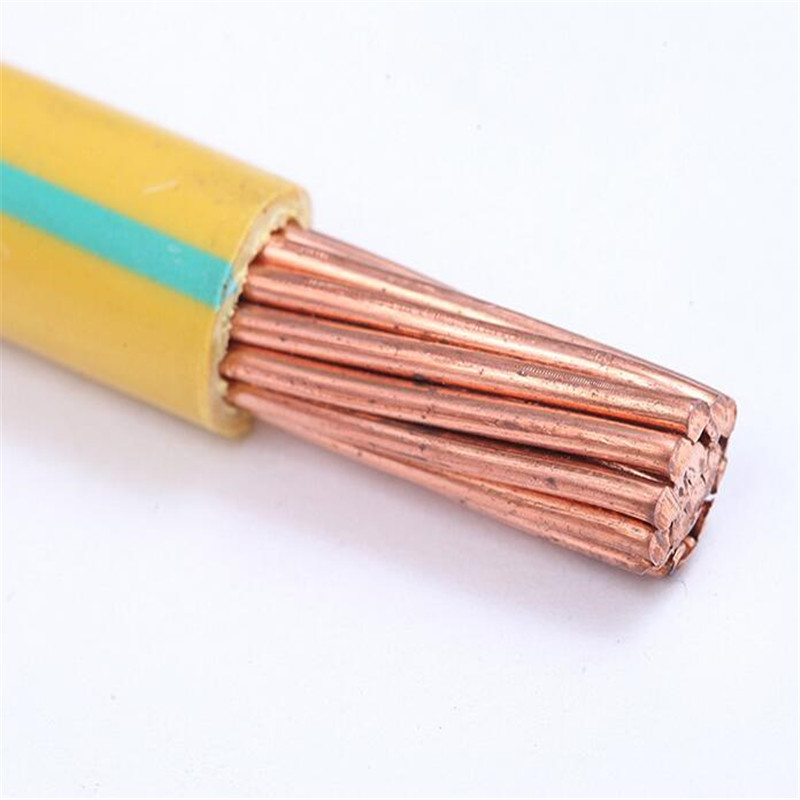

Insulated Type CU/PVC Yellow/Green 600V electrical wire cable
Number :
 |
2, Standard: GB 5023.1, IEC 60227/228, VDE
3, CE, RoHS, ISO ,SGS Certificate
4, Meet European standards and can be customized according to customer requirements
5, OEM, ODM cooperation
1,Application
This product is apply for AC450/750V or below power, and household electrical appliance,Instrument and apparatus,
telecommunications equipment and lighting ect. fixed installation.
2,Operating Characteristic
1)The rated voltage of cable Uo/U is:450/750V,300/500V,300/300V
2)The conductor of electric wire cable allows working temperature <70°C for long time
3) The installment temp of cable should not less than 0°C, OD<25mm cable, allowed bending radius should ≥4D,
OD≥25mm, allowed bending radius should≥6D
Insulated Type CU/PVC Yellow/Green 600V electrical wire cable
|
Nominal section (mm2) |
Number/diameter of core (mm) |
Insulation thickness (mm) |
Maximum outer diameter (mm) |
Reference Weight (km/kg) |
Conductor resistance at 20°C≤ (Ω/km) |
| 0.5 | 1/0.80 | 0.6 | 2.4 | 8.44 | 36 |
| 0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
| 1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
| 1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
| 2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
| 4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
| 4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
| 6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
| 6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
| 10 | 1/3.58 | 1 | 6.4 | 111.62 | 1.83 |
