Product Name:

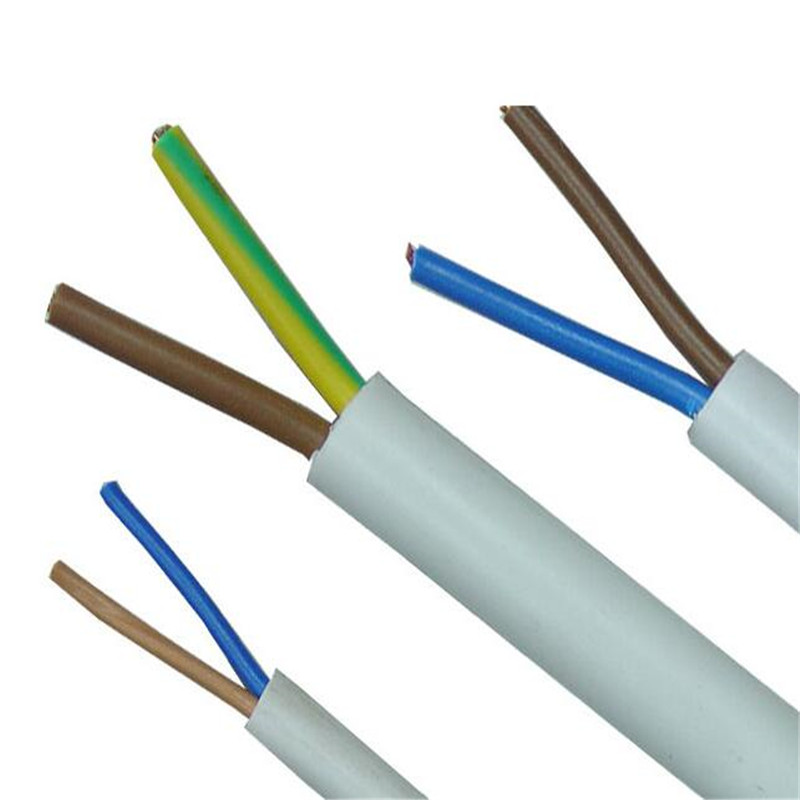

Twisted Copper PVC Insulated Electric Wire and Cable
Number :
 |
These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for
use in conduit and for fixed,protected installation.The cable can be of flame ratardance,fire resistance and other property.
Technical Information:
1.U0 /U:300/500V,450/750V
2.Standard Applied:IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3.Max.Operating Temperature:70°C,can be 90°C,105°C as per requirent
4.Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5.Insulation:PVC
6.Cores:Single core
7.Range of Nominal cross section:0.75~240sqmm
8.Jacket:Without Jacket
9.Color:Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12.Certification:ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
2.5mm Twisted Copper PVC Insulated Electric Wire and Cable
|
Nominal cross section of conductor |
Min number of single line in the stranded conductor |
insulator thickness |
sheath thickness |
Upper value of average overall diameter |
Min insulation resistance under temperature 700C MΩ.km |
| mm2 | mm | mm | mm | ||
| 2×0.75 | 1 | 0.6 | 0.9 | 4.6×7.1 | 0.012 |
| 2×1.0 | 1 | 0.6 | 0.9 | 4.8×7.4 | 0.011 |
| 2×1.5 | 1 | 0.7 | 0.9 | 5.3×8.5 | 0.011 |
| 2×2.5 | 1 | 0.8 | 1 | 6.2×10.1 | 0.01 |
| 2×4 | 1 | 0.8 | 1 | 6.7×11.1 | 0.0085 |
| 2×4 | 7 | 0.8 | 1 | 6.7×11.1 | 0.008 |
