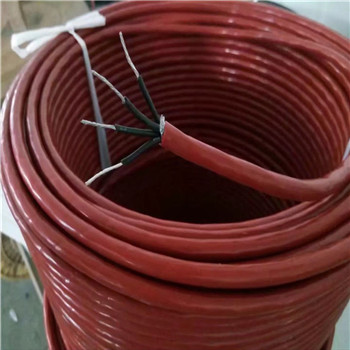

Insulated Medical Euipment Electrical Cable
 |
Product Name:
Insulated Medical Euipment Electrical Cable
Number :
 |
Product Description:
Nominal Voltage: 300V/500V
Temperature Range: -40º C to 250º C
Conductor: Tinned copper
Insulator: FEP&PFA
Jacket: Silicone rubber&PVC
Braid: Silver copper
O. D. Tolerance: ± 0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
| Conductor | Insulation | Jacket | Packing | ||||
| AWG |
Conductor Constuction |
Diameter |
Insulator Thickness mm |
Over Diameter mm |
Jacket Thickness mm |
Over Diameter mm | Mt/Coils |
| NO/mm | mm | ||||||
| 28*3c | 7*0.12 | 0.37 | 0.25 | 0.87 | 0.5 | 2.87 | 305 |
| 26*3c | 19*0.10 | 0.5 | 0.25 | 1 | 0.5 | 3.15 | 305 |
| 24*3c | 19*0.12 | 0.6 | 0.25 | 1.1 | 0.5 | 3.37 | 100 |
| 22*3c | 19*0.15 | 0.76 | 0.25 | 1.26 | 0.5 | 3.71 | 100 |
| 20*3c | 19*0.19 | 0.96 | 0.25 | 1.46 | 0.5 | 4.14 | 100 |
