Product Name:

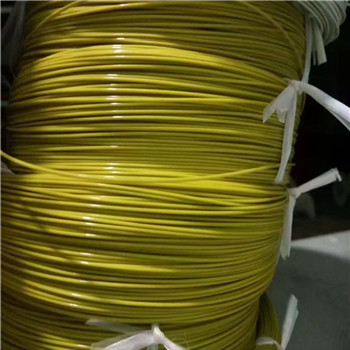

Fluorinated Ethylene Propylene FEP Insulated Wire and Cable
Number :
 |
AC rated voltage: 300V-600V
Conductor is used in single wire or stranded wire (0.014~95mm2 ) of tin-plated, silver or bare copper.
Insulation is using FEP(F46)
Color: Red\blue\white \ yellow \green\brown\black\grey \transparent
It is corrosion-resistant and almost impossibly soluble in any organic solvent and it is oil-resistant, less high-frequency loss,
moisture-proof and has big insulation resistance. Also, it is incombustible, non-aging and durable.
Use Range
It is used in air-conditioner, microwave oven, electric products, lighting sets, electric heater, oven, electric factory, various motors
and so on.
| Spec. |
Conductor Construction (No/mm) |
Dia (mm) | Norminal Dia.(mm) | External Dia (mm) | Rated Volatge (V) | DC Resistance ( Ω/km) |
| 0.12 | 7/0.15 | 0.9 | 0.9 | 1 | 600V | 163 |
| 0.2 | 7/0.2 | 1.1 | 1.1 | 1.2 | 600V | 90.4 |
| 0.35 | 19/0.16 | 1.3 | 1.3 | 1.4 | 600V | 53.1 |
| 0.5 | 19/0.18 | 1.4 | 1.4 | 1.5 | 600V | 36.7 |
| 0.75 | 19/0.23 | 1.7 | 1.7 | 1.8 | 600V | 24.6 |
| 1 | 19/0.26 | 1.8 | 1.8 | 1.9 | 600V | 20.4 |
| 1.2 | 19/0.28 | 2 | 2 | 2.1 | 600V | 16.6 |
| 1.5 | 19/0.32 | 2.2 | 2.2 | 2.3 | 600V | 12.7 |
| 2 | 19/0.37 | 2.5 | 2.5 | 2.6 | 600V | 10 |
| 2.5 | 19/0.41 | 2.9 | 2.9 | 3 | 600V | 7.43 |
It is corrosion-resistant and almost impossibly soluble in any organic solvent and it is oil-resistant, less high-frequency loss,
moisture-proof and has big insulation resistance. Also, it is incombustible, non-aging and durable.
