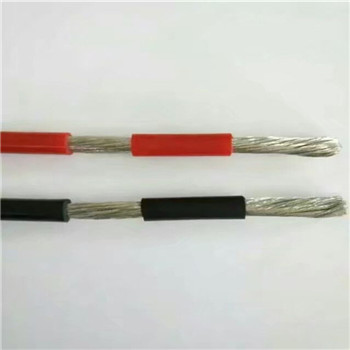

75V DC Auto Speed System Sensor Cable

Product Name:

75V DC Auto Speed System Sensor Cable

Number :

Product Description:

TECHNICAL DATE

Nominal Voltage:300V

Temperature Range:-100~+200 degree

Conductor:Tinned Copper

Insulator:FEP

O.D.Tolerance:±0.10mm

Testing Volta:2500V

Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc

CHARACTERISTIC

High temperature resistance, low temperature resistance, anti-acid, anti-oil, antisepsis and moistureproof, UL 758,
RoHs compliance.

APPLICATION

Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series,
metallurgy chemical series, motor cars & ships electrical installation.

75V DC Auto Speed System Sensor Cable

Conductor			Insulation		Over Diameter		Packing Ft/Roll
AWG	No./mm	Out.Dia. mm	Avr.Thick. mm	Min.Thick. mm	average mm	tolerance mm	Packing Ft/Roll
20	19/0.19	0.95	0.15	0.10	1.25	±0.10	2000
22	19/0.15	0.75	0.15	0.10	1.05	±0.10	2000
24	7/0.20	0.61	0.15	0.10	0.91	±0.10	2000
26	7/0.16	0.48	0.15	0.10	0.78	±0.10	2000
28	7/0.127	0.38	0.15	0.10	0.68	±0.10	2000
30	7/0.10	0.30	0.15	0.10	0.60	±0.10	2000
32	7/0.08	0.24	0.15	0.10	0.54	±0.10	2000
