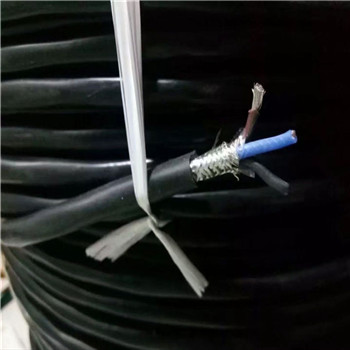

Fluoroplastic shield cable 14 -18AWG

Product Name:

Fluoroplastic shield cable 14 -18AWG

Number :

Product Description:

Nominal Voltage: 600V

Temperature Range: -60º C to 200º C

Testing Voltage: 1500v

Conductor: Tinned copper

Insulator: Silicone rubber

Jacket: FEP&PFA&ETFE&PTFE

O. D. Tolerance: ± 0.20mm

Color: Black-brown-blue-gray-white

Con. Of conductor.: 105/0.1

Diameter: 1.18MM

Thickness of insulator: 0.55MM

Over diameter: 4.08MM

Packing: 200M/COIL

fluoroplastic Insulated Installation Wire AF200 (Tinned Copper)

Spec.	Conductor Construction (No/mm)	Dia (mm)	Norminal Dia. (mm)	External Dia (mm)	Rated Volatge (V)	DC Resistance ( Ω/km)
0.12	7/0.15	0.9	0.9	1	600V	163
0.2	7/0.2	1.1	1.1	1.2	600V	90.4
0.35	19/0.16	1.3	1.3	1.4	600V	53.1
0.5	19/0.18	1.4	1.4	1.5	600V	36.7
0.75	19/0.23	1.7	1.7	1.8	600V	24.6
1	19/0.26	1.8	1.8	1.9	600V	20.4
1.2	19/0.28	2	2	2.1	600V	16.6
1.5	19/0.32	2.2	2.2	2.3	600V	12.7
2	19/0.37	2.5	2.5	2.6	600V	10
2.5	19/0.41	2.9	2.9	3	600V	7.43
4	37/0.37	3.4	3.4	3.5	600V	4.88
