Product Name:

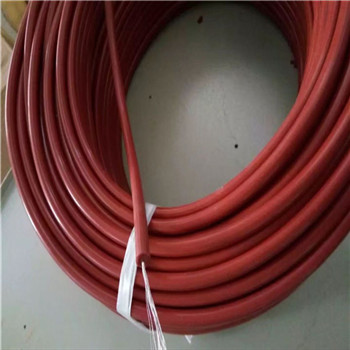

UL 1710 FEP PFA Insulation High-Temperature Tinned Stranded Wire
Number :
 |
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below.
It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and
fire-resist wire;Household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard,
electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,
oxidant-resistance and so on.Bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance;
Flame-retardant, Anti-ageing, long age of usage
Rated voltage:600V and below
Test of power-frequency withstand voltage:3000V
Temperature range:-65~+250ºC
Conductor: Tinned copper or Silver-plated copper
Insulation: FEP, PFA , PTFE according to customer's request
Color:Red yellow blue green white black orange purple brown
UL 1710 FEP PFA Insulation High-Temperature Tinned Stranded Wire
| Conductor | Insulator | Electrical Characteristic | ||||
| AWG |
Conductor Construction No./mm |
Diameter mm |
Insulator Thickness mm |
Over Diameter mm |
Realst.max Cuc,c20oc ohm/km |
Permissible ampacity 20oc-AMP |
| 30 | 1×0.25 | 0.25 | 0.2 | 0.65 | 376.13 | 1.27 |
| 28 | 1×0.31 | 0.31 | 0.25 | 0.81 | 227.39 | 2.02 |
| 26 | 7×0.15 | 0.46 | 0.46 | 1.38 | 148.94 | 3.22 |
| 19×0.10 | 0.5 | 0.46 | 1.42 | 148.94 | 3.22 | |
| 24 | 7×0.20 | 0.61 | 0.46 | 1.53 | 93.25 | 5.15 |
| 19×0.12 | 0.6 | 0.46 | 1.52 | 93.25 | 5.15 | |
| 22 | 7×0.25 | 0.76 | 0.46 | 1.68 | 55 | 8.73 |
| 19×0.15 | 0.76 | 0.46 | 1.68 | 55 | 8.73 | |
| 20 | 7×0.31 | 0.95 | 0.46 | 1.87 | 34.6 | 13.87 |
| 19×0.19 | 0.96 | 0.46 | 1.88 | 34.6 | 13.87 | |
| 18 | 7×0.39 | 1.19 | 0.46 | 2.11 | 21.8 | 22.02 |
| 19×0.235 | 1.18 | 0.46 | 2.1 | 21.8 | 22.02 | |
| 16 | 7×0.50 | 1.53 | 0.46 | 2.45 | 13.7 | 35.04 |
| 19×0.30 | 1.51 | 0.46 | 2.43 | 13.7 | 35.04 |
|
