Product Name:

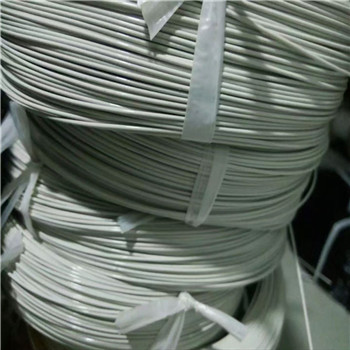

Copper Conduct FEP PFA Insulation Ground Wire 300V 500V
Number :
 |
Pressure test: 2000V
Temperature range: AFP150 is-65 to +150C, AFP200 is -65 to +200C, AFP250 is -65 to +250C
Conductor:
AFP 150 and AFP200: Tinned copper, silver-plated copper or nickel-plated copper
AFP 250: Silver-plated copper or nickel-plated copper
Insulation: AFP150 and AFP200: Poly FEP
AFP250: FUSIBLE POLYTETRAFLUOROETHYLENEN
Colors: Red, yellow, blue, white, black, brown, green, gray, purple, pink, transparent, and any combinatin of two different
colors
Shiled: Plating tin, plated silver or nickel-plated copper braid shield...
Product performance:
Has excellent corrosion resistance, resistant to oil, acid, anti-alkali, strong oxidant, has excellent electrical insulation
properties, resistance to high voltage, does not absorb moisture, Has excellent flame resistance, aging resistance,
long service life
Black Wire Copper Conduct FEP PFA Insulation Ground Wire 300V 500V
| Conductor | Insulator | Electrical Characteristic | ||||
| AWG |
Conductor Construction No./mm |
Diameter mm |
Insulator Thickness mm |
Over Diameter mm |
Realst.max Cuc, c20ocohm/km |
Permissible ampacity 20oc-AMP |
| 30 | 1×0.25 | 0.25 | 0.2 | 0.65 | 376.13 | 1.27 |
| 28 | 1×0.31 | 0.31 | 0.25 | 0.81 | 227.39 | 2.02 |
| 26 | 7×0.15 | 0.46 | 0.46 | 1.38 | 148.94 | 3.22 |
| 19×0.10 | 0.5 | 0.46 | 1.42 | 148.94 | 3.22 | |
| 24 | 7×0.20 | 0.61 | 0.46 | 1.53 | 93.25 | 5.15 |
| 19×0.12 | 0.6 | 0.46 | 1.52 | 93.25 | 5.15 | |
| 22 | 7×0.25 | 0.76 | 0.46 | 1.68 | 55 | 8.73 |
| 19×0.15 | 0.76 | 0.46 | 1.68 | 55 | 8.73 | |
| 20 | 7×0.31 | 0.95 | 0.46 | 1.87 | 34.6 | 13.87 |
| 19×0.19 | 0.96 | 0.46 | 1.88 | 34.6 | 13.87 | |
| 18 | 7×0.39 | 1.19 | 0.46 | 2.11 | 21.8 | 22.02 |
| 19×0.235 | 1.18 | 0.46 | 2.1 | 21.8 | 22.02 | |
| 16 | 7×0.50 | 1.53 | 0.46 | 2.45 | 13.7 | 35.04 |
| 19×0.30 | 1.51 | 0.46 | 2.43 | 13.7 | ||
