Product Name:

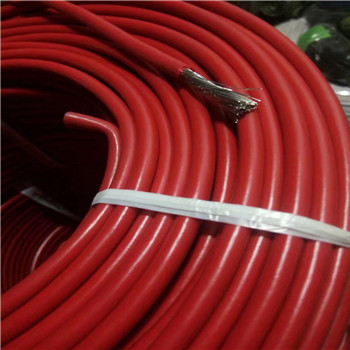

Af200 0.2mm Red FEP Coated Silver Copper Wires
Number :
 |
Rated voltage: 600V
Pressure test: 2000V
Temperature range: AFP150 is-65 to +150C, AFP200 is -65 to +200C, AFP250 is -65 to +250C
Conductor:
AFP 150 and AFP200: Tinned copper, silver-plated copper or nickel-plated copper
AFP 250: Silver-plated copper or nickel-plated copper
Insulation: AFP150 and AFP200: Poly FEP
AFP250: FUSIBLE POLYTETRAFLUOROETHYLENEN
Colors: Red, yellow, blue, white, black, brown, green, gray, purple, pink, transparent, and any combinatin of two different colors
Shiled: Plating tin, plated silver or nickel-plated copper braid shield...
Product performance:
Has excellent corrosion resistance, resistant to oil, acid, anti-alkali, strong oxidant, has excellent electrical insulation properties,
resistance to high voltage, does not absorb moisture, Has excellent flame resistance, aging resistance, long service life
Application:
Becuase these products have many advantages, it is widely used in military areas, such as aircraft, armored vehices, tanks, radar and
other internal electrical signal connections and poer transmission, also applies to the electronics industry, household appliances industry,
microwave ovens, electronic prodcuts, lamps, heaters, ovens, power plants, vehicles and other types of internal wiring
Af200 0.2mm Red FEP Coated Silver Copper Wires
| Spec. |
Conductor Construction (No/mm) |
Dia (mm) |
Norminal Dia. (mm) |
External Dia (mm) |
Rated Volatge (V) |
DC Resistance ( Ω/km) |
| 0.12 | 7/0.15 | 0.9 | 0.9 | 1 | 600V | 163 |
| 0.2 | 7/0.2 | 1.1 | 1.1 | 1.2 | 600V | 90.4 |
| 0.35 | 19/0.16 | 1.3 | 1.3 | 1.4 | 600V | 53.1 |
| 0.5 | 19/0.18 | 1.4 | 1.4 | 1.5 | 600V | 36.7 |
| 0.75 | 19/0.23 | 1.7 | 1.7 | 1.8 | 600V | 24.6 |
| 1 | 19/0.26 | 1.8 | 1.8 | 1.9 | 600V | 20.4 |
| 1.2 | 19/0.28 | 2 | 2 | 2.1 | 600V | 16.6 |
| 1.5 | 19/0.32 | 2.2 | 2.2 | 2.3 | 600V | 12.7 |
| 2 | 19/0.37 | 2.5 | 2.5 | 2.6 | 600V | 10 |
| 2.5 | 19/0.41 | 2.9 | 2.9 | 3 | 600V | 7.43 |
| 4 | 37/0.37 | 3.4 | 3.4 | 3.5 | 600V | 4.88 |
| 6 | 37/0.45 | 4.2 | 4.2 | 4.3 | 600V | 3.3 |
