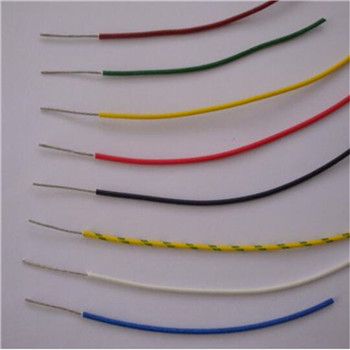

19X0.18mm Copper Stranded FEP PFA Insulated Wire
 |
Product Name:
19X0.18mm Copper Stranded FEP PFA Insulated Wire
Number :
 |
Product Description:
Nominal Voltage: 300V
Temperature Range: -100 Degree~+150 Degree
O. D. Tolerance: ± 0.15mm
Testing Volta: 2000V
UL Approval
Conductor: Tinned or Sliver-plated or Nickel Copper
Insulator: FEP
Colours: Whit-bule-red-black-brown-yello-wgreen-yellow/green-transparent
They are the same with then inner fixed wires for Home Electric applinaces, Lighthing equipments,
mechanical electrical machines
19X0.18mm Copper Stranded FEP PFA Insulated Wire
| Conductor | Insulation | Over Diameter | ||||
| AWG | No./mm | Out.Dia. mm |
Avr.Thick. mm |
Min.Thick. mm |
average mm |
tolerance mm |
| 20 | 19/0.19 | 0.95 | 0.15 | 0.10 | 1.25 | ±0.10 |
| 22 | 19/0.15 | 0.75 | 0.15 | 0.10 | 1.05 | ±0.10 |
| 24 | 7/0.20 | 0.61 | 0.15 | 0.10 | 0.91 | ±0.10 |
| 26 | 7/0.16 | 0.48 | 0.15 | 0.10 | 0.78 | ±0.10 |
| 28 | 7/0.127 | 0.38 | 0.15 | 0.10 | 0.68 | ±0.10 |
| 30 | 7/0.10 | 0.30 | 0.15 | 0.10 | 0.60 | ±0.10 |
| 32 | 7/0.08 | 0.24 | 0.15 | 0.10 | 0.54 | ±0.10 |
