Product Name:

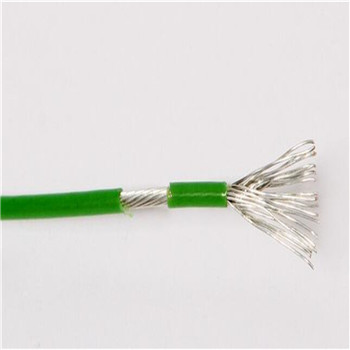

UL1331 AWG 16 FEP PFA High Temperature RoHS Wire
Number :
 |
AC rated voltage: 300V-600V
Conductor is used in single wire or stranded wire (0.014~95mm2 ) of tin-plated, silver or bare copper.
Insulation is using FEP(F46)
Color: Red\blue\white \ yellow \green\brown\black\grey \transparent
It is corrosion-resistant and almost impossibly soluble in any organic solvent and it is oil-resistant, less
high-frequency loss, moisture-proof and has big insulation resistance. Also, it is incombustible, non-aging
and durable.
Use Range
It is used in air-conditioner, microwave oven, electric products, lighting sets, electric heater, oven, electric factory,
various motors and so on.
UL1331 AWG 16 FEP PFA High Temperature RoHS Wire
| Conductor | Insulator | Electrical Characteristic | ||||
| AWG |
Conductor Construction No./mm |
Diameter mm |
Insulator Thickness mm |
Over Diameter mm |
Realst. max Cuc,c 20ocohm/km |
Permissible ampacity 20oc- AMP |
| 30 | 7x0.10 | 0.3 | 0.51 | 1.32 | 376.96 | 0.66 |
| 28 | 7x0.12 | 0.36 | 0.51 | 1.38 | 237.25 | 1.05 |
| 26 | 7X0.16 | 0.48 | 0.51 | 1.5 | 148.94 | 1.61 |
| 1x0.4 | 0.51 | 1.42 | 148.94 | 1.61 | ||
| 24 | 7X0.20 | 0.6 | 0.51 | 1.62 | 93.25 | 2.57 |
| 19X0.12 | 0.6 | 0.51 | 1.62 | 93.25 | 2.57 | |
| 22 | 7X0.25 | 0.75 | 0.51 | 1.78 | 55 | 4.36 |
| 19X0.15 | 0.75 | 0.51 | 1.77 | 55 | 4.36 | |
| 20 | 7X0.31 | 0.93 | 0.51 | 1.97 | 34.6 | 6.94 |
| 19X0.19 | 0.95 | 0.51 | 1.97 | 34.6 | 6.94 | |
| 18 | 7X0.39 | 1.17 | 0.51 | 2.2 | 21.8 | 11.01 |
| 19X0.235 | 1.18 | 0.51 | 2.2 | 21.8 | 11.01 | |
| 16 | 7X0.50 | 1.5 | 0.51 | 2.52 | 13.7 | 17.52 |
| 19X0.30 | 1.5 | 0.51 | 2.52 | 13.7 | 17.52 | |
