Product Name:

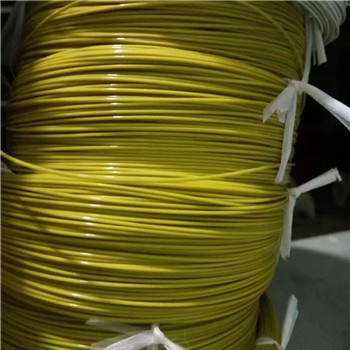

2 Sq. mm High Mechanical Strength FEP Insulated Wire and Cable
Number :
 |
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below.
It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and
fire-resist wire;Household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard,
electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,
oxidant-resistance and so on.Bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance;
Flame-retardant, Anti-ageing, long age of usage
Rated voltage:600V and below
Test of power-frequency withstand voltage:3000V
Temperature range:-65~+250ºC
Conductor: Tinned copper or Silver-plated copper
Insulation: FEP, PFA , PTFE according to customer's request
Color:Red yellow blue green white black orange purple brown
2 Sq. mm High Mechanical Strength FEP Insulated Wire and Cable
| Spec. | Conductor Construction (No/mm) |
Dia (mm) | Norminal Dia. (mm) |
External Dia (mm) |
Rated Volatge (V) |
DC Resistance ( Ω/km) |
| 0.12 | 7/0.15 | 0.9 | 0.9 | 1 | 600V | 163 |
| 0.2 | 7/0.2 | 1.1 | 1.1 | 1.2 | 600V | 90.4 |
| 0.35 | 19/0.16 | 1.3 | 1.3 | 1.4 | 600V | 53.1 |
| 0.5 | 19/0.18 | 1.4 | 1.4 | 1.5 | 600V | 36.7 |
| 0.75 | 19/0.23 | 1.7 | 1.7 | 1.8 | 600V | 24.6 |
| 1 | 19/0.26 | 1.8 | 1.8 | 1.9 | 600V | 20.4 |
| 1.2 | 19/0.28 | 2 | 2 | 2.1 | 600V | 16.6 |
| 1.5 | 19/0.32 | 2.2 | 2.2 | 2.3 | 600V | 12.7 |
| 2 | 19/0.37 | 2.5 | 2.5 | 2.6 | 600V | 10 |
| 2.5 | 19/0.41 | 2.9 | 2.9 | 3 | 600V | 7.43 |
| 4 | 37/0.37 | 3.4 | 3.4 | 3.5 | 600V | 4.88 |
| 6 | 37/0.45 | 4.2 | 4.2 | 4.3 | 600V |
