Product Name:

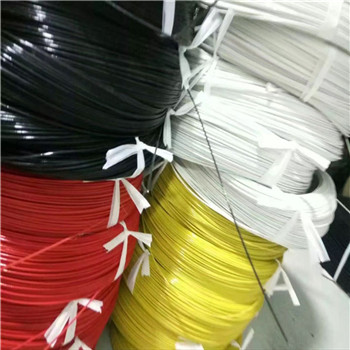

600V PTFE Insulated High Temperature Hook up Electrical UL3135 Wire
Number :
 |
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below.
It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire
and fire-resist wire;Household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant
cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,
oxidant-resistance and so on.Bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance;
Flame-retardant, Anti-ageing, long age of usage
Rated voltage:600V and below
Test of power-frequency withstand voltage:3000V
Temperature range:-65~+250ºC
Conductor: Tinned copper or Silver-plated copper
Insulation: FEP, PFA , PTFE according to customer's request
Color:Red yellow blue green white black orange purple brown
600V PTFE Insulated High Temperature Hook up Electrical UL3135 Wire
| Conductor | Insulation | Over Diameter | Packing Ft/Roll |
||||
| AWG | No./mm | Out.Dia. mm |
Avr.Thick. mm |
Min.Thick. mm |
average mm |
tolerance mm |
|
| 20 | 19/0.19 | 0.95 | 0.15 | 0.10 | 1.25 | ±0.10 | 2000 |
| 22 | 19/0.15 | 0.75 | 0.15 | 0.10 | 1.05 | ±0.10 | 2000 |
| 24 | 7/0.20 | 0.61 | 0.15 | 0.10 | 0.91 | ±0.10 | 2000 |
| 26 | 7/0.16 | 0.48 | 0.15 | 0.10 | 0.78 | ±0.10 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.15 | 0.10 | 0.68 | ±0.10 | 2000 |
| 30 | 7/0.10 | 0.30 | 0.15 | 0.10 | 0.60 | ±0.10 | 2000 |
| 32 | 7/0.08 | 0.24 | 0.15 | 0.10 | 0.54 | ±0.10 | 2000 |
