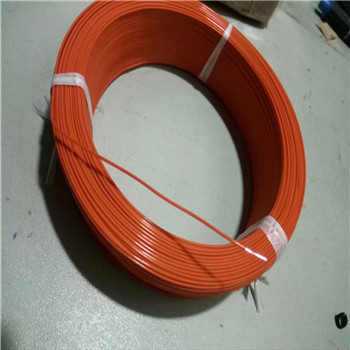

14AWG 600V FEP Coated House Wiring Electrical Cable Prices

Product Name:

14AWG 600V FEP Coated House Wiring Electrical Cable Prices

Number :

Product Description:

Insulation FEP

Conductor Silver Copper

Temperature Range -65ºC~+250ºC

Rated Voltage 600V

O.D.Tolerance ±0.1mm

Colour White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green

Used for various electric machineries,electronic ceramics,heating parts,car lights,lighting,ballast etc.

14AWG 600V FEP Coated House Wiring Electrical Cable Prices

Conductor			Insulator		Electrical Characteristic
AWG	Conductor Construction No./mm	Diameter mm	Insulator Thickness mm	Over Diameter mm	Realst.max Cuc, c20ocohm/km	Permissible ampacity 20oc-AMP
30	1×0.25	0.25	0.2	0.65	376.13	1.27
28	1×0.31	0.31	0.25	0.81	227.39	2.02
26	7×0.15	0.46	0.46	1.38	148.94	3.22
26	19×0.10	0.5	0.46	1.42	148.94	3.22
24	7×0.20	0.61	0.46	1.53	93.25	5.15
24	19×0.12	0.6	0.46	1.52	93.25	5.15
22	7×0.25	0.76	0.46	1.68	55	8.73
22	19×0.15	0.76	0.46	1.68	55	8.73
20	7×0.31	0.95	0.46	1.87	34.6	13.87
20	19×0.19	0.96	0.46	1.88	34.6	13.87
18	7×0.39	1.19	0.46	2.11	21.8	22.02
18	19×0.235	1.18	0.46	2.1	21.8	22.02
16	7×0.50	1.53	0.46	2.45	13.7	35.04
16	19×0.30	1.51	0.46	2.43	13.7	35.04
14	19×0.37	1.86	0.5	2.86	8.62
