Product Name:

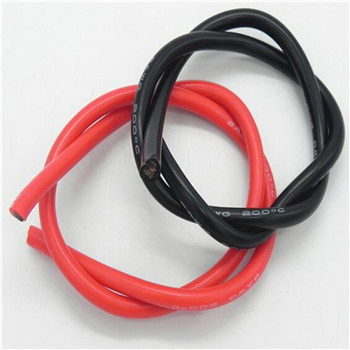

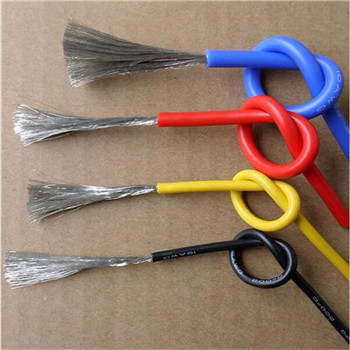

Silicone Rubber Power Cable for Oil Industry
Number :
 |
1.Product Standard
This product is manufactured according to GB/5013,JB8735.
2.Application
1.Allowed long-term working temperature of the cable conductor:for silicon rubber insulated ,the highest temperature is 180ºC,
for the others,it is 60ºC.
2.For the type of YQW,YAW,YCW,the cables have a good properties of oil-resistance and climate-resiatance,it is suitable used outdoor
or the site with oil fouling .
3.Implemented standard
1.For the type of 60245IEC03(YG),implement GB5013.3 Heat-resistant, << silicon rubber insulated cable >>
2.For the type of 60245IEC53(YZ),60245IEC57(YZW),and 60245IEC66(YCW) implement GB5013.4
3.For the type of 60245IEC70(YTB),60245IEC74(YT),60245IEC75(YTF) implement GB5013.5<<evator cable >>.
4.For the type of 60245IEC81(YH),60245IEC82(YHF) implement GB5013.6<<cable for welding machine>>.
5.or the type of YQ,YQW,YZ,YZW,YZB,YZWB,YC,YCW implement JB8735.2 < <General rubber flexible cable >>.
4.Name,type and application.
Type and voltage |
Description |
Application |
YG-300/500V |
Heat-resisting silicon rubber insulated cable |
Used for high-temperature site |
60IEC53(YZ)300/500V |
Rubber flexible cable |
Used for various movable electrical equipment and tools |
6024IEC57(YZW)300/500V |
CR-jacketed flexible cable |
|
60245IEC66(YCW)450/750V |
Heavy-duty rubber flexible cable |
Used for various movable electrical equipment and can withstand larger mechanical forces |
60245IEC701(YTB)300/500V 60245IEC74(YT)300/500V 60245IEC(YTF)300/500V |
Braided lift cable High-strength rubber lift cable PCP rubber lift cable |
Used for electricity |
60245IEC81(YH) |
Common rubber sheathed cable for electric welding machine |
Used for electric welding machine |
60245IEC82(YHF) |
PCP sheathed cable for electric welding machine |
|
YQ,YQW300/500V |
Light-duty rubber flexible cable |
Used light duty movable electrical equipment and tools |
YZ,YZW300/500V |
Medium-duty rubber flexible cable |
|
YZB,YZWB 300/500V |
Medium-duty rubber flat flexible cable |
|
YC,YCW450/750V |
Heavy-duty rubber flexible cable |
Used for various movable electrical equipment and can withstand larger mechanical forces |
YHD 300/500V |
Open country rubber insulated power cable |
Used for various movable electrical equipment and tools in the open country |
