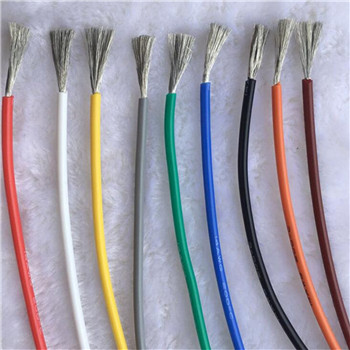

Silicone Rubber Cable 1.0mm with VDE H05sj-K

Product Name:

Silicone Rubber Cable 1.0mm with VDE H05sj-K

Number :

Product Description:

Silicone Rubber Cable 1.0mm with VDE H05sj-K

Nominal Voltage:300V
Temperature Range:-60ºC to 180ºC
Conductor:Tinned copper
Insulator:silicone rubber
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect
Section:1.00mm2
con.of conductor.:32/0.2
Diameter:1.31mm
Thickness of insulator:0.6mm
over diameter:2.51mm
Packing:400m/coil

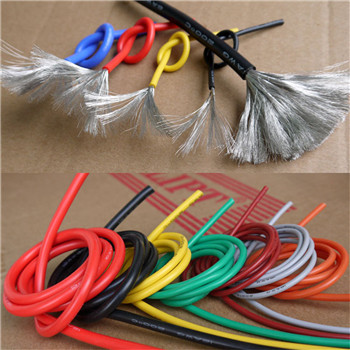

Silicone Rubber Cable 1.0mm with VDE H05sj-K

AWG	Conductor			Insulation thickness		Braiding thickness	Cable OD		Resistance
AWG	size	Structure	OD	Norminal	OD	Braiding thickness	Norminal	Tolerance	Ω/KM
NO.	mm²	No./mm	mm	mm	mm	mm	mm	mm	Max.
16	1.31	7/0.49	1.55	1.28	4.11	0.2	4.50	±0.20	14.6
		26/0.254
		52/0.18
15	1.65	33/0.254	1.75	1.28	4.31	0.20	4.70	±0.20	11.3
14	2.08	41/0.254	1.95	1.28	4.51	0.2	4.90	±0.20	8.96
		7/0.62
		37/0.26
13	2.63	52/0.254	2.15	1.28	4.71	0.20	5.10	±0.20	7.10
12	3.31	65/0.254	2.5	1.28	5.06	0.2	5.50	+0.30	5.64
12	3.31	43/0.32	2.5	1.28	5.06	0.2	5.50	-0.20	5.64
11	4.17	83/0.254	2.74	1.28	5.3	0.2	5.70	+0.30	4.48
11	4.17	34/0.40	2.74	1.28	5.3	0.2	5.70	-0.20	4.48
10	5.261	35/0.45	3.20	1.28	5.76	0.20	6.20	+0.30 -0.20	3.55
9	6.631	53/0.40	3.98	1.28	6.54	0.20	7.00	+0.30 -0.20	2.81
8	8.367	70/0.40	4.40	1.28	6.96	0.20	7.40	+0.30 -0.20	2.30
7	10.55	84/0.40	4.60	1.28	7.16	0.25	7.70	+0.30 -0.20	1.79
6	13.30	105/0.40	5.30	1.28	7.86	0.25	8.40	+0.30 -0.20	1.42
