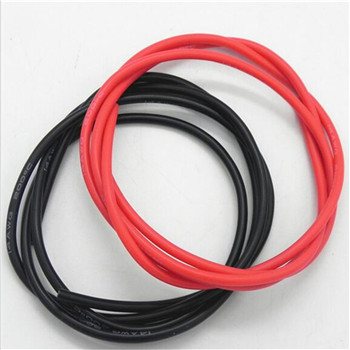

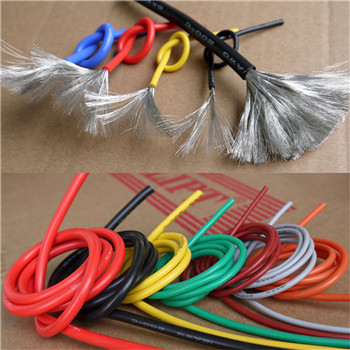

High Temperature Silicone Rubber Cable for New Energy Application
Number :
 |
High Temperature Silicone Rubber Cable for New Energy Application
Conductor: bare copper, tinned copper
Insulator: silicone rubber
Jacket: Fiber glass braiding with silicone resin coating
Rated temp:150/180ºC
Rated volt:1100V (3300V, 6600V , 13800V)
Test Voltage: 3200V. 1Min
Flame test: FT 2
Mechanical properties:
Tensile strength: ≥3.45N/mm²
Elongation at break of insulation: ≥100%
Min.Bending radius: 6×OD
Standard: UL758, UL62, UL1581
Characteristics:
Silicone rubber wire & cable have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC.
The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength.
The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness,
an excellent mechnical protection by maintaining good flexibility.
The varnishing of the braiding results in good antifriction properties, high abrasion resistance and excellent chemical resistance against transformer oil,
light fuel oil and most types of cleaning agents.
In the event of fire, no corrosive and toxic gases will be given off.
Hence, damage caused by fire can be kept to minimum.
Application:
Thanks to the above characters, silicone wire & cable are used where high flexibility is required and high temperatuer conditions. It is therefore a suitable
connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines.
High Temperature Silicone Rubber Cable for New Energy Application
AWG
Conductor
Insulation thickness
Braiding thickness
Cable OD
Resistance
size
Structure
OD
Norminal
OD
Norminal
Tolerance
Ω/KM
NO.
mm²
No./mm
mm
mm
mm
mm
mm
mm
Max.
16
1.31
7/0.49
1.55
1.28
4.11
0.2
4.50
±0.20
14.6
26/0.254
52/0.18
15
1.65
33/0.254
1.75
1.28
4.31
0.20
4.70
±0.20
11.3
14
2.08
41/0.254
1.95
1.28
4.51
0.2
4.90
±0.20
8.96
7/0.62
37/0.26
13
2.63
52/0.254
2.15
1.28
4.71
0.20
5.10
±0.20
7.10
12
3.31
65/0.254
2.5
1.28
5.06
0.2
5.50
+0.30
5.64
43/0.32
-0.20
11
4.17
83/0.254
2.74
1.28
5.3
0.2
5.70
+0.30
4.48
34/0.40
-0.20
10
5.261
35/0.45
3.20
1.28
5.76
0.20
6.20
+0.30 -0.20
3.55
9
6.631
53/0.40
3.98
1.28
6.54
0.20
7.00
+0.30 -0.20
2.81
8
8.367
70/0.40
4.40
1.28
6.96
0.20
7.40
+0.30 -0.20
2.30
7
10.55
84/0.40
4.60
1.28
7.16
0.25
7.70
+0.30 -0.20
1.79
6
13.30
105/0.40
5.30
1.28
7.86
0.25
8.40
+0.30 -0.20
1.42
