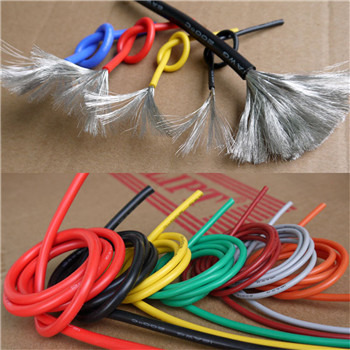

Silicone Cable for Auto/Automobile Assembly Harness

Product Name:

Silicone Cable for Auto/Automobile Assembly Harness

Number :

Product Description:

Characteristic
single core extra flexible cable with silicone rubber insulation.
It has good resistance to high and low temperatures, weather proof and extra flexibility of the conductor is ideal
for simple installation.

Technical Data
Working Temperature:-60 +180 °C
Temperature Peaks:210 °C
Nominal Voltage:300/500 V
Voltage test:2 kV

Construction
Conductor: Class 6 copper wire,IEC EN 60228 Class 6
Insulation:silicone rubber

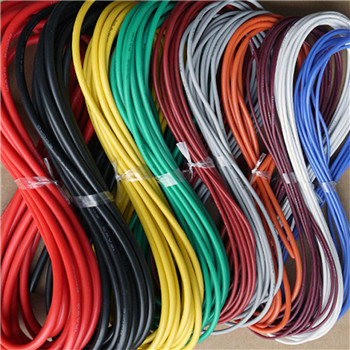

Colours:White, Grey, Black, Red, Brown, Blue, Yellow, Green, Purple, Green /Yellow, Blue / White and more

Silicone Cable for Auto/Automobile Assembly Harness

AWG	Condutor			Insulation Thickness		Wire diameter		Max resistance Ω/KM
AWG	Spec.	Structure	OD	Nominal	Min	Nominal	Tolerance
NO.	mm²	P/mm	mm	mm	mm	mm	mm
26	0.128	7/0.16	0.48	0.76	0.69	2	±0.10	148
24	0.205	7/0.20	0.6	0.76	0.69	2.15	±0.10	93
22	0.324	7/0.25	0.75	0.76	0.69	2.3	±0.15	55
20	0.519	7/0.31 10/0.26	0.96	0.76	0.69	2.5	±0.15	34.6
18	0.823	7/0.39 16/0.26	1.2	0.76	0.69	2.75	±0.20	21.8
16	1.31	7/0.49	1.47	0.76	0.69	3	±0.20	13.7
16	1.31	26/0.26	1.55	0.76	0.69	3.1	±0.20	13.7
14	2.08	7/0.62 41/0.254	1.9	0.76	0.69	3.45	±0.25	8.62
12	3.31	19/0.49 43/0.32	2.5	0.76	0.69	4.05	±0.25	5.38
26	0.128	1/0.42	0.42	0.76	0.69	1.95	±0.10	142
24	0.205	1/0.52	0.52	0.76	0.69	2.05	±0.10	89
22	0.324	1/0.65	0.65	0.76	0.69	2.2	±0.15	54.3
20	0.519	1/0.82	0.82	0.76	0.69	2.35	±0.15	33.9
18	0.823	1/1.05	1.05	0.76	0.69	2.6	±0.20	21.4
16	1.31	1/1.30	1.3	0.76	0.69	2.85	±0.20	13.5
