Product Name:
Sihf Heat-Resistant Multi-Cores Silicone Rubber Cable
Number :
 |
Applications:
1.This product is suitable for the cable of AC 50Hz, rated voltage of 0.6 / 1kV (the maximum voltage 1.2kV) for power transmission.
2.It is widely used in metallurgy, electric power, petrochemical, electronics, car manufacturing and other high-temperature resistant
occasions.
Product Features:
This product has the following properties: radiation resistance, heat-resistance, cold-resistance, acid and alkali-resistance, corrosive
gases resistance and water resistance etc.

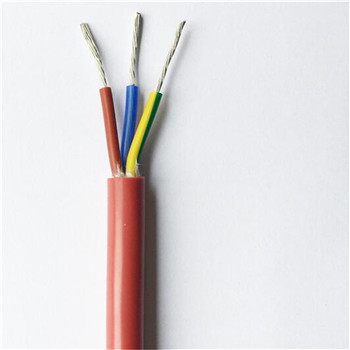

Sihf Heat-Resistant Multi-Cores Silicone Rubber Cable
|
Operating Property: |
|
|
Items |
Description |
|
Rated Voltage |
Frequency AC rated voltage is 0.6 / 1kV. The maximum |
|
voltage of using AC system is no more than 1.2 kv |
|
|
Operating Temperature |
The long-term maxmium operating temperature of cable:conductor is 180 ºC. |
|
Environment Temperature |
Minimum environment temperature: fixed laying -60 ºC, |
|
non-fixed laying -20 ºC. |
|
|
Laying temperature |
Laying cable temperature should not be lower than -20 ºC. |
|
Bending radius |
The bending radius of single-core cable is not more than 20D, |
|
the bending radius of multi-cores cable is not more than 15D. |
|
|
Storage |
Finished cable should be stored at 0 ~ 40 ºC, humidity is |
|
below 85% of the environment, and avoid direct sunlight |
|
|
and the rain, keep ventilation and dry environment. |
|
|
According to the above requirements for storage and use, |
|
|
the cable can be used for more than 25 years long. |
|
|
Installation Instruction |
When installed, the environment temperature should not be |
|
lower than -20 ºC. if the environment temperature is lower |
|
|
-20 ºC, the cable should be preheated before installation. |
|
|
To avoid the machnical damage of the internal cable, |
|
|
the bending radius should be controlled strictly.The bending |
|
|
radius of single core cable is not more than 20D, the bending |
|
|
radius of multi-cores cable is not more than 15D. |
|
|
("D "means the out diameter of cable) |
|
