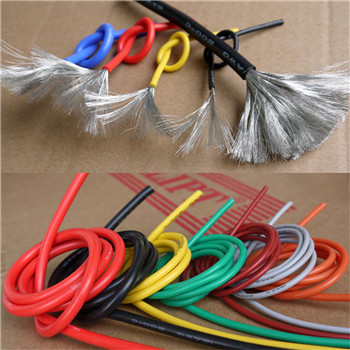

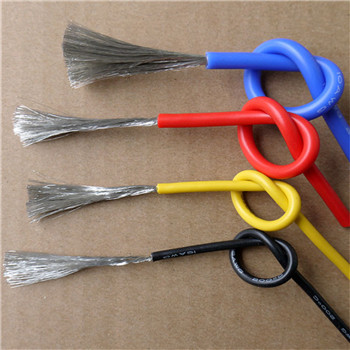

Heat Resistant Copper Conductor Flexible Silicone Rubber Cable

Product Name:

Heat Resistant Copper Conductor Flexible Silicone Rubber Cable

Number :

Product Description:

Heat Resistant Copper Conductor Flexible Silicone Rubber Cable

voltage	600v
temperature	200c
conductor	tinned copper
insulation	silicone rubber
appliance	apply to all kinds of electric home appliance,electric motor leading wire,light,high temperature enviroment.

Heat Resistant Copper Conductor Flexible Silicone Rubber Cable

AWG	Condutor			Insulation Thickness		Wire diameter		Max resistance Ω/KM
AWG	Spec.	Structure	OD	Nominal	Min	Nominal	Tolerance
NO.	mm²	P/mm	mm	mm	mm	mm	mm
26	0.128	7/0.16	0.48	0.76	0.69	2	±0.10	148
24	0.205	7/0.20	0.6	0.76	0.69	2.15	±0.10	93
22	0.324	7/0.25	0.75	0.76	0.69	2.3	±0.15	55
20	0.519	7/0.31 10/0.26	0.96	0.76	0.69	2.5	±0.15	34.6
18	0.823	7/0.39 16/0.26	1.2	0.76	0.69	2.75	±0.20	21.8
16	1.31	7/0.49	1.47	0.76	0.69	3	±0.20	13.7
16	1.31	26/0.26	1.55	0.76	0.69	3.1	±0.20	13.7
14	2.08	7/0.62 41/0.254	1.9	0.76	0.69	3.45	±0.25	8.62
12	3.31	19/0.49 43/0.32	2.5	0.76	0.69	4.05	±0.25	5.38
26	0.128	1/0.42	0.42	0.76	0.69	1.95	±0.10	142
24	0.205	1/0.52	0.52	0.76	0.69	2.05	±0.10	89
22	0.324	1/0.65	0.65	0.76	0.69	2.2	±0.15	54.3
20	0.519	1/0.82	0.82	0.76	0.69	2.35	±0.15	33.9
18	0.823	1/1.05	1.05	0.76	0.69	2.6	±0.20	21.4
16	1.31	1/1.30	1.3	0.76	0.69	2.85	±0.20	13.5
