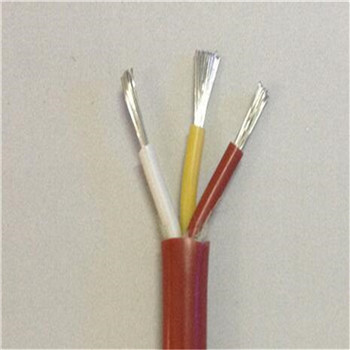

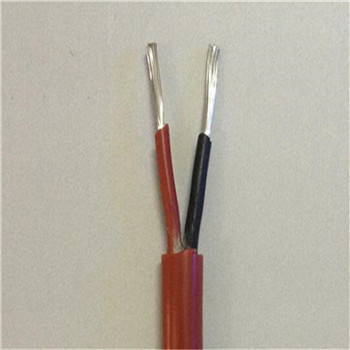

600V 200 Degree Multicore Silicone Rubber Cable
 |
Product Name:
600V 200 Degree Multicore Silicone Rubber Cable
Number :
 |
Product Description:
600V 200 Degree Multicore Silicone Rubber Cable
Application
suitable for industrial areas where PVC insulated cables become brittle with increased temperature and mechanical
requirements for example mechanical engineering, glass and ceramic fabrication and steel / iron fabrication.
The steel wire braid protects the sheath against mechanical stress.
Should the cable burn, an insulation silicon dioxide layer will remain on the conductor to render it short circuit proof.
Feature
Ratings:150C/180C/200C 300/ 500V/600V
Conductor:Tinned Copper
Insulation:Silicone
Sheath:Silicone
Shield:Tinned Copper ,Stainless steel wire
Application
For High Temperature equipment.
600V 200 Degree Multicore Silicone Rubber Cable
YGZ |
Section mm2 | Conductor mm |
Insulation thickness mm |
Sheath thickness mm |
Outer diameter mm |
Max outer diameter mm |
|
| 2×0.75 | 24/0.20 | 0.6 | 0.8 | 6.28 | 7.22 | ||
| 2×1.0 | 32/0.20 | 0.6 | 0.9 | 6.84 | 7.87 | ||
| 2×1.5 | 30/0.25 | 0.7 | 1.0 | 8.00 | 9.20 | ||
| 2×2.5 | 49/0.25 | 0.8 | 1.1 | 9.2 | 10.58 | ||
| 3×0.75 | 24/0.20 | 0.6 | 0.9 | 6.84 | 7.87 | ||
| 3×1.0 | 32/0.20 | 0.6 | 0.9 | 7.23 | 8.31 | ||
| 3×1.5 | 30/0.25 | 0.7 | 1.0 | 8.46 | 9.73 | ||
| 3×2.5 | 49/0.25 | 0.8 | 1.1 | 9.96 | 11.45 | ||
| 4×0.75 | 24/0.20 | 0.6 | 0.9 | 7.48 | 8.58 | ||
| 4×1.0 | 32/0.20 | 0.6 | 0.9 | 7.88 | 9.06 | ||
| 4×1.5 | 30/0.25 | 0.7 | 1.0 | 9.44 | 10.86 | ||
| 4×2.5 | 49/0.25 | 0.8 | 1.2 | 11.09 | 12.75 | ||
