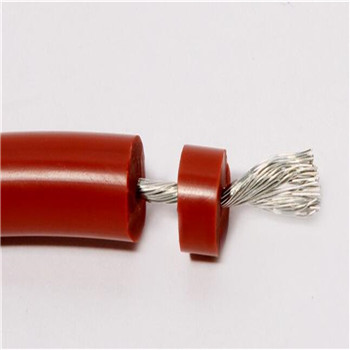

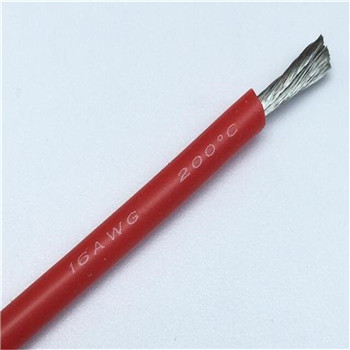

Professional Silicone Rubber Electric Wire Cables Manufacturer



voltage	600v
temperature	200c
conductor	tinned copper
insulation	silicone rubber
appliance	apply to all kinds of electric home appliance,electric motor leading wire,light,high temperature enviroment.



Professional Silicone Rubber Electric Wire Cables Manufacturer



AWG	Condutor			Insulation Thickness		Wire diameter		Max resistance Ω/KM
	Spec.	Structure	OD	Nominal	Min	Nominal	Tolerance
NO.	mm²	P/mm	mm	mm	mm	mm	mm
26	0.128	7/0.16	0.48	0.76	0.69	2	±0.10	148
24	0.205	7/0.20	0.6	0.76	0.69	2.15	±0.10	93
22	0.324	7/0.25	0.75	0.76	0.69	2.3	±0.15	55
20	0.519	7/0.31 10/0.26	0.96	0.76	0.69	2.5	±0.15	34.6
18	0.823	7/0.39 16/0.26	1.2	0.76	0.69	2.75	±0.20	21.8
16	1.31	7/0.49	1.47	0.76	0.69	3	±0.20	13.7
		26/0.26	1.55	0.76	0.69	3.1
14	2.08	7/0.62 41/0.254	1.9	0.76	0.69	3.45	±0.25	8.62
12	3.31	19/0.49 43/0.32	2.5	0.76	0.69	4.05	±0.25	5.38
26	0.128	1/0.42	0.42	0.76	0.69	1.95	±0.10	142
24	0.205	1/0.52	0.52	0.76	0.69	2.05	±0.10	89
22	0.324	1/0.65	0.65	0.76	0.69	2.2	±0.15	54.3
20	0.519	1/0.82	0.82	0.76	0.69	2.35	±0.15	33.9
18	0.823	1/1.05	1.05	0.76	0.69	2.6	±0.20	21.4
16	1.31	1/1.30	1.3	0.76	0.69	2.85	±0.20	13.5
