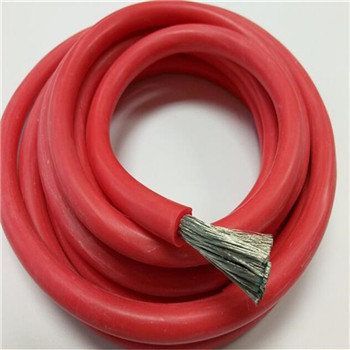

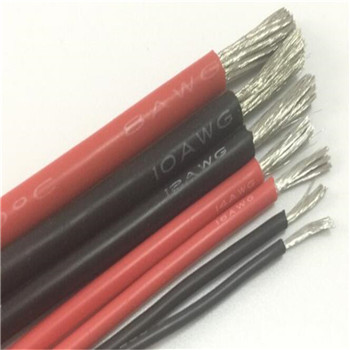

14AWG High Temperature Silicone Tinned Copper Wire Cable

Product Name:

14AWG High Temperature Silicone Tinned Copper Wire Cable

Number :

Product Description:

Characteristic

single core extra flexible cable with silicone rubber insulation.
It has good resistance to high and low temperatures, weather proof and extra flexibility of the conductor is ideal for simple installation.

Technical Data
Working Temperature:-60 +180 °C
Temperature Peaks:210 °C
Nominal Voltage:300/500 V
Voltage test:2 kV

Construction
Conductor: Class 6 copper wire,IEC EN 60228 Class 6
Insulation:silicone rubber
Colours:White, Grey, Black, Red, Brown, Blue, Yellow, Green, Purple, Green /Yellow, Blue / White and more

AWG	Condutor			Insulation Thickness		Wire diameter		Max resistance Ω/KM
AWG	Spec.	Structure	OD	Nominal	Min	Nominal	Tolerance
NO.	mm²	P/mm	mm	mm	mm	mm	mm
26	0.128	7/0.16	0.48	0.76	0.69	2	±0.10	148
24	0.205	7/0.20	0.6	0.76	0.69	2.15	±0.10	93
22	0.324	7/0.25	0.75	0.76	0.69	2.3	±0.15	55
20	0.519	7/0.31 10/0.26	0.96	0.76	0.69	2.5	±0.15	34.6
18	0.823	7/0.39 16/0.26	1.2	0.76	0.69	2.75	±0.20	21.8
16	1.31	7/0.49	1.47	0.76	0.69	3	±0.20	13.7
16	1.31	26/0.26	1.55	0.76	0.69	3.1	±0.20	13.7
14	2.08	7/0.62 41/0.254	1.9	0.76	0.69	3.45	±0.25	8.62
12	3.31	19/0.49 43/0.32	2.5	0.76	0.69	4.05	±0.25	5.38
26	0.128	1/0.42	0.42	0.76	0.69	1.95	±0.10	142
24	0.205	1/0.52	0.52	0.76	0.69	2.05	±0.10	89
22	0.324	1/0.65	0.65	0.76	0.69	2.2	±0.15	54.3
20	0.519	1/0.82	0.82	0.76	0.69	2.35	±0.15	33.9
18	0.823	1/1.05	1.05	0.76	0.69	2.6	±0.20	21.4
16	1.31	1/1.30	1.3	0.76	0.69	2.85	±0.20	13.5
