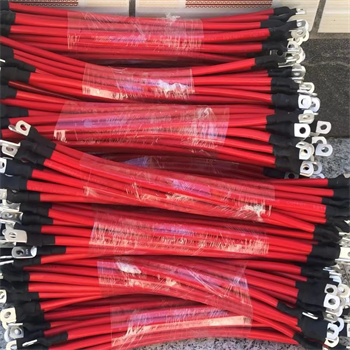

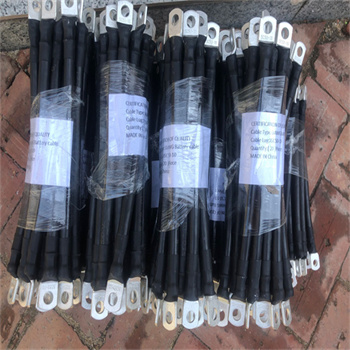

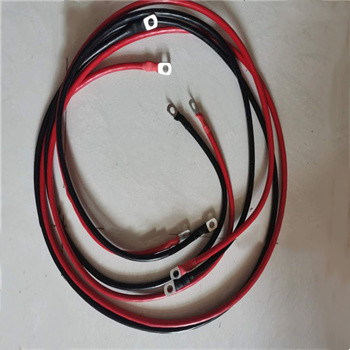

1/0, 2/0, 3/0, 4/0 AWG OFC battery cable for car audio
 |
Product Name:
1/0, 2/0, 3/0, 4/0 AWG OFC battery cable for car audio
Number :
 |
Product Description:
1/0, 2/0, 3/0, 4/0 AWG OFC battery cable for car audio
Application:
Designed for the secondary (high current) connection to automatic or hand-held metal arc welding electrodes. It is suitable for flexible
use under rugged conditions, on assembly lines and conveyor systems, in machine tool and automatically operated line and spot
welding machines.
Power:Earthing/return leads, power feeds to electrolytic plating process, Busbar connection, transformers, generators, aircraft
servicing equipments etc.
Constructure:

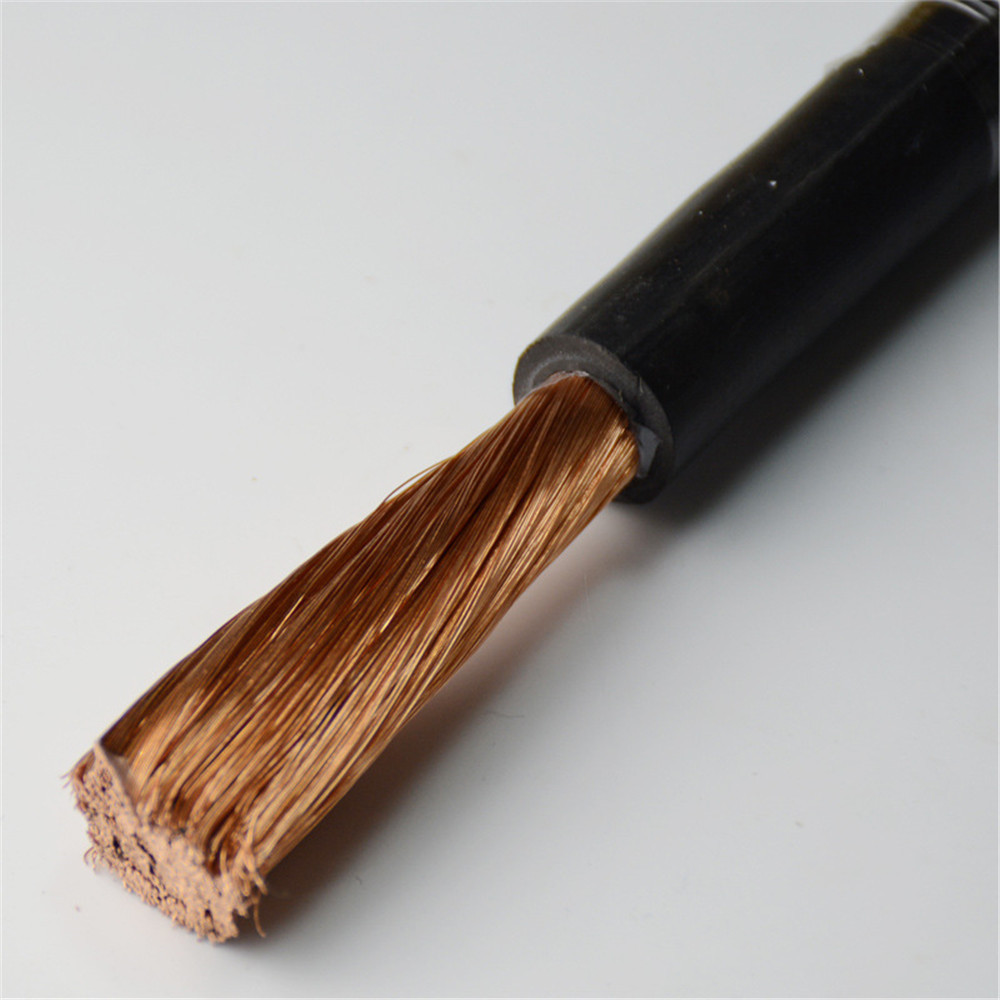

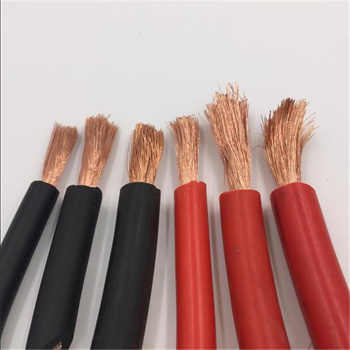

Conductor: High conductivity, bare annealed copper flexible conductor.
Sheath: Natural rubber, Horoprene rubber or other syntheitic rubber.
| Recommended Length and Amperage for Battery Cable | |||||
| Cable Size | 50 Amps | 100 Amps | 150 Amps | 200 Amps | 300 Amps |
| 6 Gauge (AWG) | 11.8 ft | 5.9 ft | 4.4 ft | 2.9 ft | 2.2 ft |
| 4 Gauge (AWG) | 18.8 ft | 9.4 ft | 6.3 ft | 4.7 ft | 3.1 ft |
| 2 Gauge (AWG) | 29.8 ft | 14.9 ft | 9.9 ft | 7.4 ft | 4.9 ft |
| 1 Gauge (AWG) | 37.7 ft | 18.9 ft | 12.6 ft | 9.4 ft | 6.3 ft |
| 1/0 Gauge (AWG) | 47.5 ft | 23.8 ft | 15.9 ft | 11.9 ft | 7.9 ft |
| 2/0 Gauge (AWG) | 60 ft | 30 ft | 20 ft | 15 ft | 10 ft |
| 3/0 Gauge (AWG) | 75.6 ft | 37.8 ft | 25.2 ft | 18.9 ft | 12.6 ft |
| 4/0 Gauge (AWG) | 95.2 ft | 47.6 ft | 31.7 ft | 23.8 ft | 15.8 ft. |
