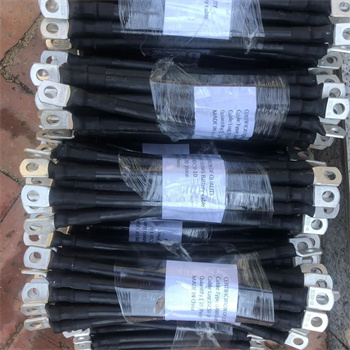

12V Battery Charger cable, 2/0AWG Car Battery Jumper Cables
 |
Product Name:
12V Battery Charger cable, 2/0AWG Car Battery Jumper Cables
Number :
 |
Product Description:
12V Battery Charger cable, 2/0AWG Car Battery Jumper Cables
Application:
Designed for the secondary (high current) connection to automatic or hand-held metal arc welding electrodes.
It is suitable for flexible use under rugged conditions, on assembly lines and conveyor systems, in machine tool
and automatically operated line and spot welding machines.
Power:Earthing/return leads, power feeds to electrolytic plating process, Busbar connection, transformers, generators,
aircraft servicing equipments etc.
Construction:

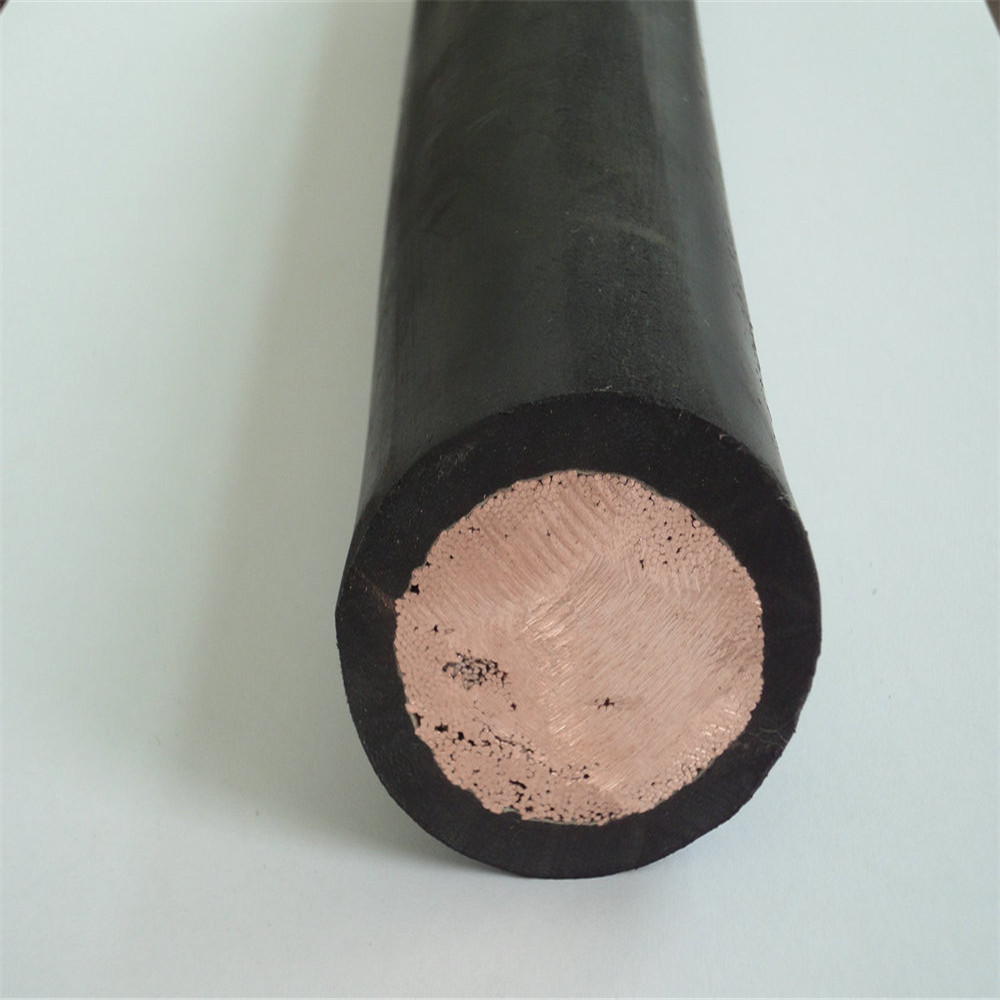

Conductor: High conductivity, bare annealed copper flexible conductor.
Sheath: Natural rubber, Horoprene rubber or other syntheitic rubber.
| Conductor Section area (AWG) |
Core No. /Dia. (No./mm) |
Nominal thickness sheath (mm) |
Overall Diameter (mm) | Max. d.c. resistance at 20°c (Ω/km) |
Approx. Weight (kg/km) |
||
| Min. | Max. | YH | YHF | ||||
| 8 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 6 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 4 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 316.6 | 331.15 |
| 2 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 1/0 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 592.47 | 610.55 |
| 2/0 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 790 | 817.52 |
| 3/0 | 2997/0.20 | 2.6 | 17 | 22 | 0.198 | 1066.17 | 1102.97 |
