Product Name:
12v Automotive Cable Auto Wiring Loom Marine Wire Car
Number :
 |
Apply to the secondary side wiring and connecting welding clamp dedicated cables, the exchange does
not exceed the rated voltage 200 V DC and pulse of 400 V peak.

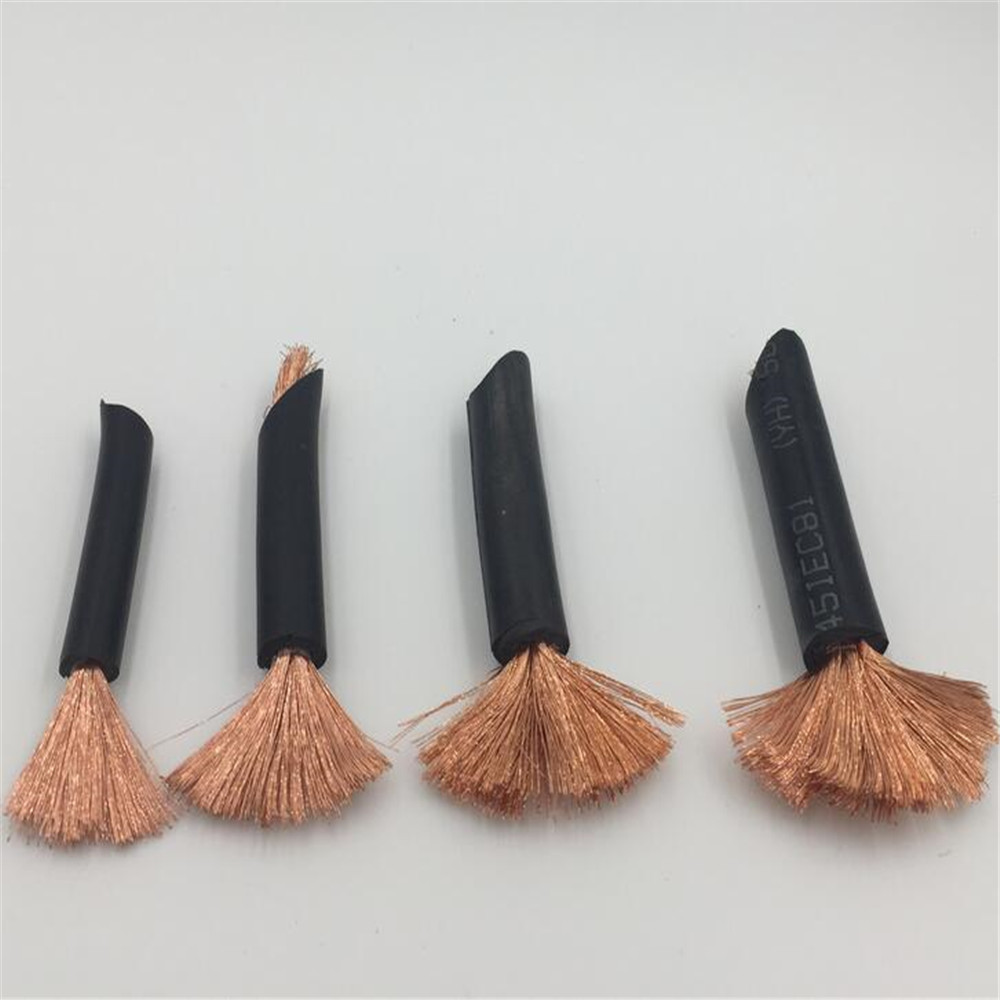

Structure:
Conductor:Bare annealed copper wire,99.99% pure copper wire or Tinned Copper wire
Insulation: Neoprene or other synthetic rubber elastomer sheathed welding cable,EPR,EPDM
Sheath: Neoprene or other synthetic rubber elastomer sheathed welding cable
Features:
1. Soft Cables, having good bending properties
2. The sheath material made of natural rubber or chloroprene rubber mixture,
can be applied to different situations, good electrical physical properties
3. Chloroprene rubber mixture with heat oil and retardant performance
4. The maximum continuous operating temperature of the cable is 65 ℃
5.Color:Black, Orange, Red or Yellow Blue jacket, single & double insulated.
| Conductor Section area (AWG) |
Core No. /Dia. (No./mm) |
Nominal thickness sheath (mm) |
Overall Diameter (mm) |
Max. d.c. resistance at 20°c (Ω/km) |
Approx. Weight (kg/km) |
||
| Min. | Max. | YH | YHF | ||||
| 8 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 6 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 4 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 316.6 | 331.15 |
| 2 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 1/0 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 592.47 | 610.55 |
| 2/0 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 790 | 817.52 |
| 3/0 | 2997/0.20 | 2.6 | 17 | 22 | 0.198 | 1066.17 | 1102.97 |
