Supply CU/EPR Soft rubber cable

Product Name:

Supply CU/EPR Soft rubber cable

Number :

Product Description:

Supply CU/EPR Soft rubber cable

Application
H07RN-F is designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment.
Heavy duty Harmonized cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame
retardant. Typical applications of the H07RN-F cable include transformers, pumps, welders, grinders, temporary
lighting cable and feed cables to heavy mobile equipment.

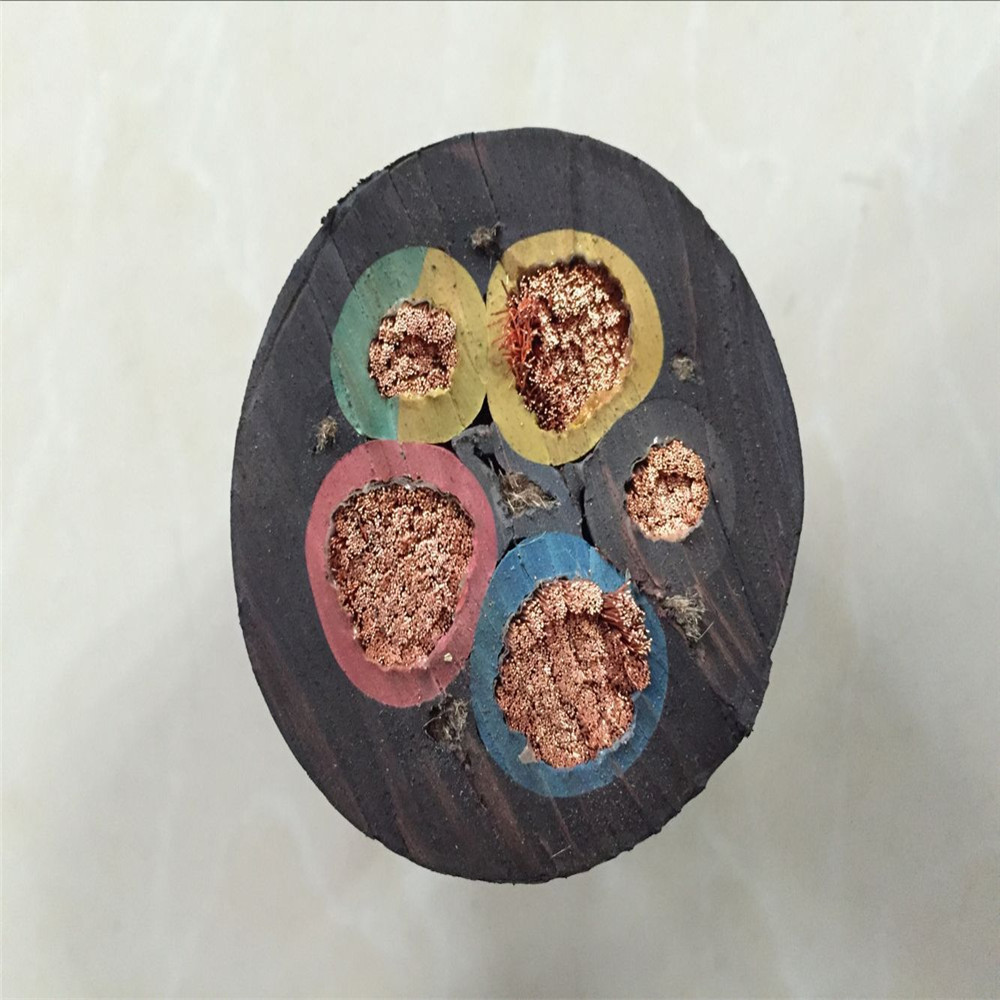

Construction
Conductor:Class 5,fine copper wire strands manufactured to IEC 60228 (previously BS6360)
Insulation:EPR (Ethylene Propylene Rubber)
Sheath:Black neoprene (PCP) outer sheath to BS7919:2001
Conductor Identification
Single Core:Black
Two Core:Brown and blue
Three Core:Brown, blue and green/yellow
Four Core:Brown, black, grey and green/yellow
Five Core:Brown, blue, black, grey and green/yellow

Technical Information
Rated Voltage:450/750V
Test Voltage:3000V
Temperature Range:-25°C to +85°C
Ambient Temperature:30° C
Operating Temperature:60°C
Minimum Bending Radius:6 x Ø for cables not exceeding 25mm
Static:8 x Ø for cables exceeding 25mm

Flexing:15 x Ø

Rubber Insulated and Rubber Sheathed Cable
Conductor Section area (mm2)	Nominal thickness insulation (mm)	Nominal thickness sheath (mm)	Overall Diameter (mm)	Max. DC resistance at 20°C (Ω/km)
1x1.5	0.8	5.9	50	13.3
1x2.5	0.9	6.5	65	7.98
1x4	1	7.4	89	4.95
1x6	1	8.1	115	3.3
1x10	1.2	10.4	190	1.91
1x16	1.2	11.6	259	1.21
1x25	1.4	13.7	375	0.78
1x35	1.4	15.4	492	0.554
1x50	1.6	17.7	675	0.386
1x70	1.6	20	908	0.272
1x95	1.8	22.1	1171	0.206
1x120	1.8	24.5	1445	0.161
1x150	2	26.9	1783	0.129
1x185	2.2	28.9	2125	0.106
1x240	2.4	32.6	2733	0.0801
1x300	2.6	36.5	3348	0.0641
1x400	2.8	40.4	4293	0.0486
1x500	3	42.6	5262	0.0384
1x630	3	47.2	6790	0.0287
