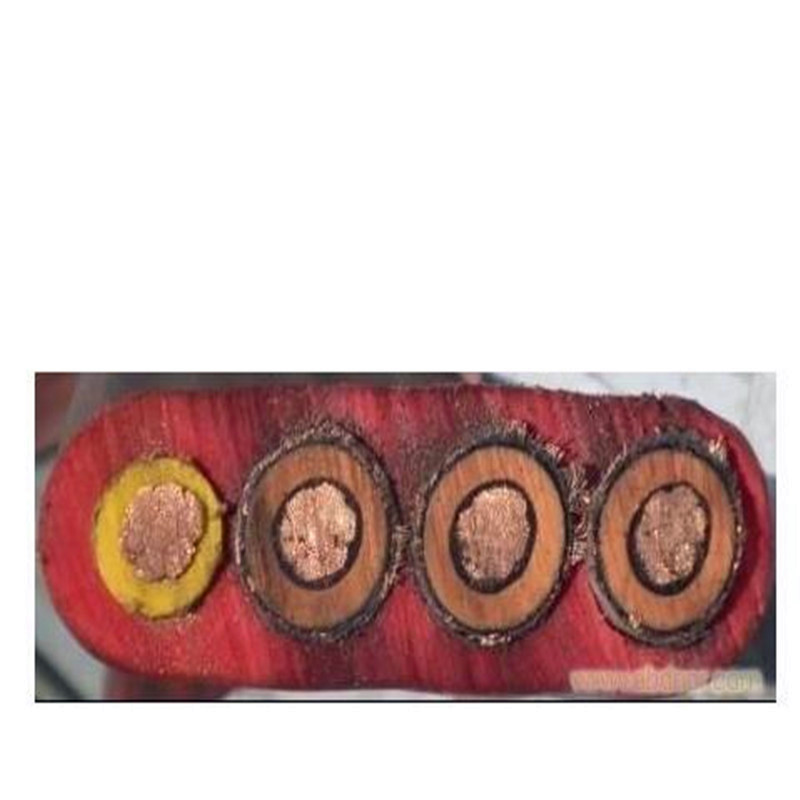

chloroprene rubber sheathed high-pressure rubber flat soft cable rated voltage 8.7/10kV
 |
Product Name:
chloroprene rubber sheathed high-pressure rubber flat soft cable rated voltage 8.7/10kV
Number :
 |
Product Description:
chloroprene rubber sheathed high-pressure rubber flat soft cable rated voltage 8.7/10kV
The high pressure flat cable products for EPR insulated chloroprene rubber sheathed high-pressure rubber flat
soft cable rated voltage 8.7/10kV and the following open heavy equipment.
The high pressure flat cable products for EPR insulated chloroprene rubber sheathed high-pressure rubber flat
soft cable rated voltage 8.7/10kV and the following open heavy equipment.
Technical parameters:
The wire core long-term allowable working temperature is 85 °C.
The maximum rated temperature of cable conductor is 90 °C.
Short circuit (the longest duration of no more than 5 seconds) of the conductor temperature does not exceed 250 °C.
Cable to allow the minimum ambient temperature: UGEFP type: -15 ° C; UGEFHP type: -33 °C.
Cable bending radius: for fixed equipment for the 6D; connection to freedom of activity for the 10D; retractable cable tray
for the 12D; using transfer wizard round 15D (where D is the diameter of the cable).
The wire core long-term allowable working temperature is 85 °C.
The maximum rated temperature of cable conductor is 90 °C.
Short circuit (the longest duration of no more than 5 seconds) of the conductor temperature does not exceed 250 °C.
Cable to allow the minimum ambient temperature: UGEFP type: -15 ° C; UGEFHP type: -33 °C.
Cable bending radius: for fixed equipment for the 6D; connection to freedom of activity for the 10D; retractable cable tray
for the 12D; using transfer wizard round 15D (where D is the diameter of the cable).
EPR insulated chloroprene rubber sheathed high-pressure rubber flat soft cable rated voltage 8.7/10kV
|
Model
|
Number of cores × Nominal cross section
(mm 2) |
Conductor structure
|
Average
Dimensions (mm) |
20 ° C conductor shape resistance
≤ (Ω / km) |
Reference weight
(kg / km) |
|
|
|
|
|
|
Copper core
|
Tinned copper
|
|
|
YJGCFPB-10KV
|
3 × 16 +3 × 16/3
|
126/0.04
|
(70-75) × (31-33)
|
1.21
|
1.24
|
3700
|
|
|
3 × 25 +3 × 16/3
|
196/0.40
|
(76-81) × (33-35)
|
0.780
|
0.795
|
4300
|
|
|
3 × 35 +3 × 16/3
|
276/0.40
|
(79-84) × (34-36)
|
0.554
|
0.565
|
4800
|
|
YJGCFPB-6KV
|
3 × 16 +3 × 16/3
|
126/0.04
|
(62-64) × (27-28)
|
1.21
|
1.24
|
2815
|
|
|
3 × 25 +3 × 16/3
|
196/0.40
|
(66-69) × (29-31)
|
0.780
|
0.795
|
4100
|
|
|
3 × 35 +3 × 16/3
|
276/0.40
|
(70-73) × (30-33)
|
0.554
|
0.565
|
4750
|
|
|
3 × 50 +3 × 16/3
|
396/0.40
|
(76-79) × (32-35)
|
0.386
|
0.393
|
6300
|
|
|
3 × 70 +3 × 25/3
|
360/0.50
|
(82-85) × (34-37)
|
0.272
|
0.277
|
7380
|
|
|
3 × 95 +3 × 35/3
|
475/0.50
|
(88-92) × (36-39)
|
0.206
|
0.210
|
7800
|
|
|
3 × 120 +3 × 35/3
|
608/0.50
|
(96.5-100) × (39-41)
|
0.161
|
0.164
|
9500
|
