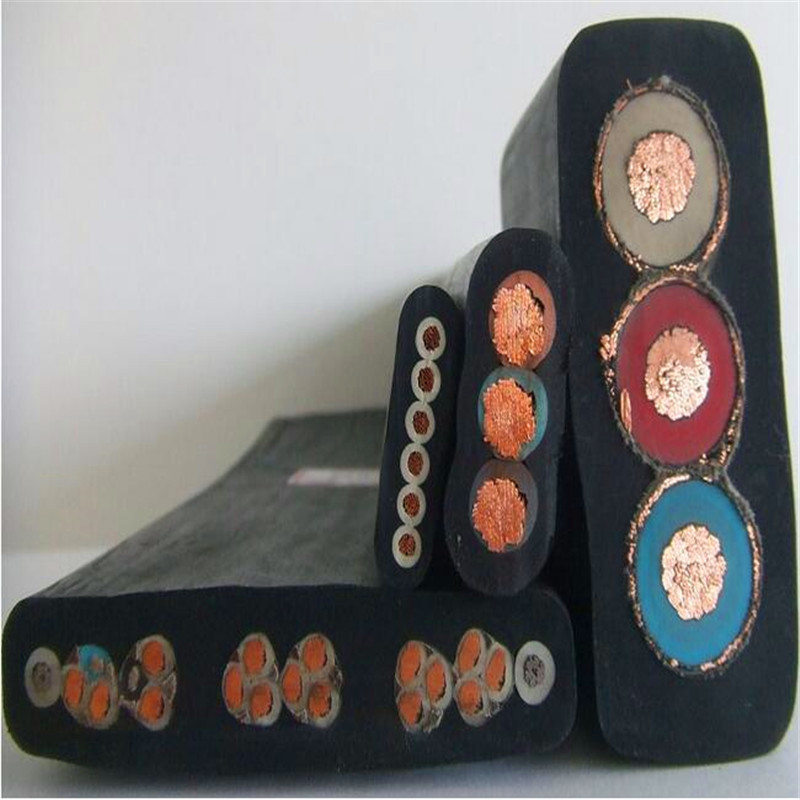

GKFB-6kv 3 * 35 +3 * 16 / 3 Mid-duty Rubber Sheathed HV Flat Cable
 |
Product Name:
GKFB-6kv 3 * 35 +3 * 16 / 3 Mid-duty Rubber Sheathed HV Flat Cable
Number :
 |
Product Description:
GKFB-6kv 3 * 35 +3 * 16 / 3 Mid-duty Rubber Sheathed HV Flat Cable
Flat cable products for high voltage 8.7/10kV and below the open heavy equipment chloroprene rubber ethylene
propylene rubber insulated high-voltage rubber sheathed flat flexible cables.
|
Model
|
Name
|
Use
|
|
GKFB-10V
GKFB-6KV |
Ports with 10KV, 6KV flat type rubber-sheathed cables
|
Rated voltage 10KV, 6KV mobile distribution unit and port handling equipment and similar devices from their power
|
technical parameters:
Wire core long-term allowable working temperature of 85 °C.
Wire core long-term allowable working temperature of 85 °C.
The maximum rated temperature of cable conductor is 90 °C.
Short (the longest duration of no more than 5 seconds) the maximum cable conductor temperature does not exceed 250 °C.
Cable to allow the minimum ambient temperature: UGEFP type: -15 °C; UGEFHP type: -33 °C.
Cable to allow the minimum bending radius: for a fixed device to 6D; free way to connect to 10D; with retractable cable reel
when 12D;
with a turn round when the wizard 15D (where D is the cable diameter).
Short (the longest duration of no more than 5 seconds) the maximum cable conductor temperature does not exceed 250 °C.
Cable to allow the minimum ambient temperature: UGEFP type: -15 °C; UGEFHP type: -33 °C.
Cable to allow the minimum bending radius: for a fixed device to 6D; free way to connect to 10D; with retractable cable reel
when 12D;
with a turn round when the wizard 15D (where D is the cable diameter).
|
Model
|
Cores × Nominal cross-section (mm 2)
|
Structure of conductor
|
Average Dimensions (mm)
|
20 °C conductor shape resistance ≤ (Ω / km)
|
Weight (kg / km)
|
|
|
|
|
|
|
Copper
|
Tinned copper
|
|
|
GKFB-10KV
|
3 × 16 +3 × 16 / 3
|
126/0.04
|
(70-75) × (31-33)
|
1.21
|
1.24
|
3700
|
|
|
3 × 25 +3 × 16 / 3
|
196/0.40
|
(76-81) × (33-35)
|
0.780
|
0.795
|
4300
|
|
|
3 × 35 +3 × 16 / 3
|
276/0.40
|
(79-84) × (34-36)
|
0.554
|
0.565
|
4800
|
|
GKFB-6KV
|
3 × 16 +3 × 16 / 3
|
126/0.04
|
(62-64) × (27-28)
|
1.21
|
1.24
|
2815
|
|
|
3 × 25 +3 × 16 / 3
|
196/0.40
|
(66-69) × (29-31)
|
0.780
|
0.795
|
4100
|
|
|
3 × 35 +3 × 16 / 3
|
276/0.40
|
(70-73) × (30-33)
|
0.554
|
0.565
|
4750
|
|
|
3 × 50 +3 × 16 / 3
|
396/0.40
|
(76-79) × (32-35)
|
0.386
|
0.393
|
6300
|
|
|
3 × 70 +3 × 25 / 3
|
360/0.50
|
(82-85) × (34-37)
|
0.272
|
0.277
|
7380
|
|
|
3 × 95 +3 × 35 / 3
|
475/0.50
|
(88-92) × (36-39)
|
0.206
|
0.210
|
7800
|
|
|
3 × 120 +3 × 35 / 3
|
608/0.50
|
(96.5-100) × (39-41)
|
0.161
|
0.164
|
9500
|
