Product Name:

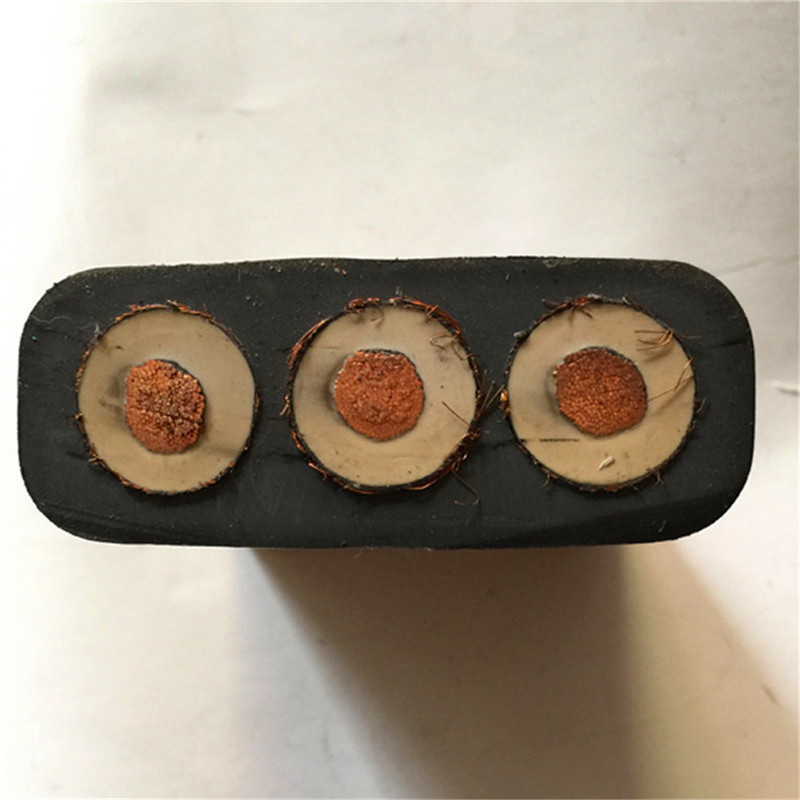

YJGCFPB-10KV power high-voltage flat cable
Number :
 |
The high pressure flat cable products for EPR insulated chloroprene rubber sheathed high-pressure rubber flat soft cable
rated voltage 8.7/10kV and the following open heavy equipment.
Technical parameters:
The wire core long-term allowable working temperature is 85 °C.
The maximum rated temperature of cable conductor is 90 °C.
Short circuit (the longest duration of no more than 5 seconds) of the conductor temperature does not exceed 250 °C.
Cable to allow the minimum ambient temperature: UGEFP type: -15 ° C; UGEFHP type: -33 °C.
Cable bending radius: for fixed equipment for the 6D; connection to freedom of activity for the 10D; retractable cable tray for the 12D;
using transfer wizard round 15D (where D is the diameter of the cable).
YJGCFPB-10KV power high-voltage flat cable
|
Specifications: |
3 * 35 +3 * 35/3, 3 * 70 +3 * 25/3, 3 × 95 +3 × 35/3, 3 × 120 +3 × 35/3, 3 * 16 +3 * 16/3 |
|
Model |
Number of cores × Nominal cross section (mm 2) |
Conductor structure |
Average Dimensions (mm) |
20 ° C conductor shape resistance ≤ (Ω / km) |
Reference weight (kg / km) |
|
|
|
|
|
|
Copper core |
Tinned copper |
|
|
YJGCFPB-10KV |
3 × 16 +3 × 16/3 |
126/0.04 |
(70-75) × (31-33) |
1.21 |
1.24 |
3700 |
|
|
3 × 25 +3 × 16/3 |
196/0.40 |
(76-81) × (33-35) |
0.780 |
0.795 |
4300 |
|
|
3 × 35 +3 × 16/3 |
276/0.40 |
(79-84) × (34-36) |
0.554 |
0.565 |
4800 |
|
YJGCFPB-6KV |
3 × 16 +3 × 16/3 |
126/0.04 |
(62-64) × (27-28) |
1.21 |
1.24 |
2815 |
|
|
3 × 25 +3 × 16/3 |
196/0.40 |
(66-69) × (29-31) |
0.780 |
0.795 |
4100 |
|
|
3 × 35 +3 × 16/3 |
276/0.40 |
(70-73) × (30-33) |
0.554 |
0.565 |
4750 |
|
|
3 × 50 +3 × 16/3 |
396/0.40 |
(76-79) × (32-35) |
0.386 |
0.393 |
6300 |
|
|
3 × 70 +3 × 25/3 |
360/0.50 |
(82-85) × (34-37) |
0.272 |
0.277 |
7380 |
|
|
3 × 95 +3 × 35/3 |
475/0.50 |
(88-92) × (36-39) |
0.206 |
0.210 |
7800 |
|
|
3 × 120 +3 × 35/3 |
608/0.50 |
(96.5-100) × (39-41) |
0.161 |
0.164 |
9500 |
