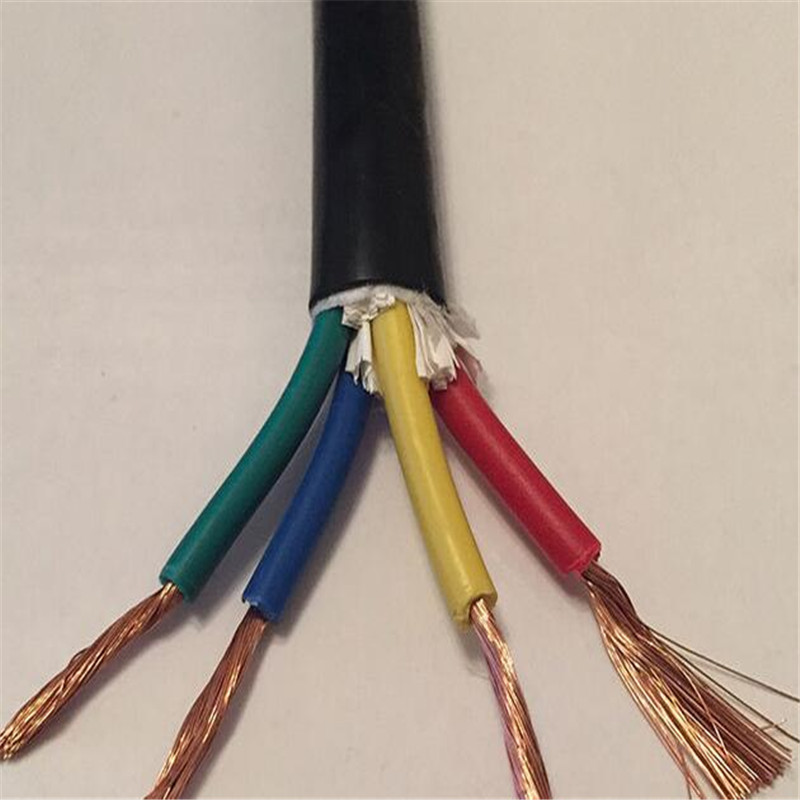

PH07RN-F model Submersible Pump Cables 450/750 V

Product Name:

PH07RN-F model Submersible Pump Cables 450/750 V

Number :

Product Description:

Application:

For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.
Submersible Pump cables is a specialized product to be used for submersible pumps in a deep well.
The area of installation is physically restrictive, and the environment is very hostile. Jainson is designed and
manufactured keeping in mind these factors to achieve the highest possible degree of reliability

Feature :
Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, chemicals, ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties.
Temperature range -40° to +90°

Standards:DIN VDE 0282 PART 810, IEC 245,BS 6007, BS 6899.

Construction:
Conductor:Plain annealed flexible copper
Insulation:EPR
Sheath/Jacket:PCP Or Synthetic Rubber (Oil resistant & flame retardant)
Core Colours:
3core:Brown, Blue & Green / Yellow
4core:Brown, Blue, Black & Green / Yellow

Submersible Pump Round Cable 450/750V
Spec(mm2)	Copper Content	Outer Diameter		Net weight
Spec(mm2)	Copper Content	Min mm	Maxmm	kg/km
4 x 1.5	58	10.5	13.5	190
4 x 2.5	96	12.5	15.5	280
4 x 4	154	14.5	18	390
4 x 6	230	16.5	22	520
4 x 10	384	22.5	24.5	950
4 x 16	614	26.5	28.5	1,400
4 x 25	960	32	34	1,950
4 x 35	1344	33	42.5	2,700
4 x 50	1920	38	48.5	3,600
4 x 70	2688	43	54.5	4,900
4 x 95	3648	50	60.5	6,200
4 x 120	4608	53	65.5	7,200
5 x 1.5	72	11.5	15	230
5 x 2.5	120	13.5	17	340
5 x 4	192	16	19.5	470
5 x 6	288	18	24.5	640
5 x 10	480	24	30.5	1,150
5 x 16	768	27	35.5	1,700
