Application :
Submersible Pump cables is a specialized product to be used for submersible pumps in a deep well.
The area of installation is physically restrictive, and the environment is very hostile.
For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.

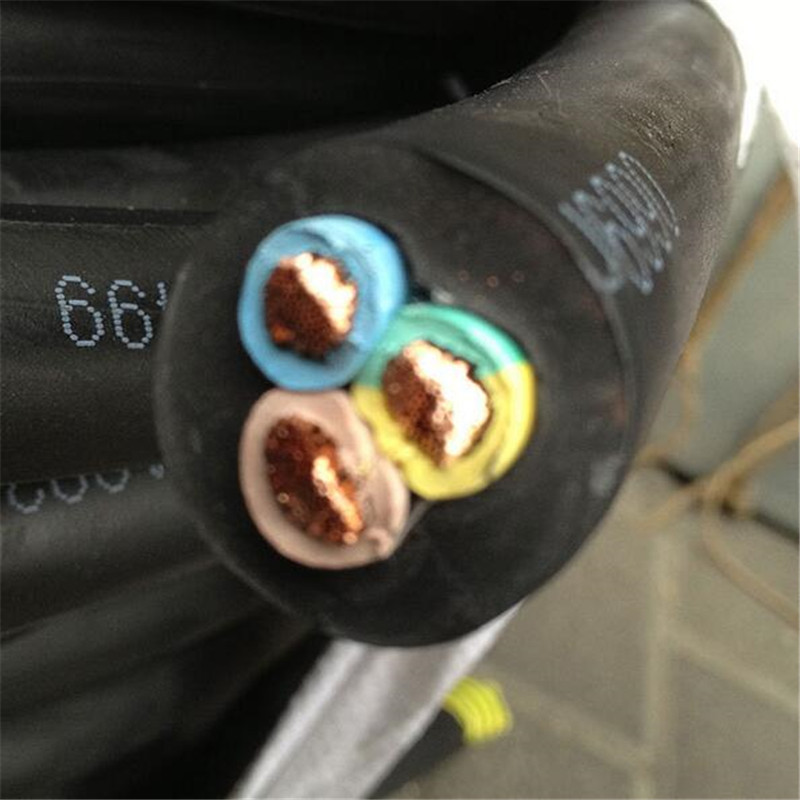

Structure
Copper: flexible copper wire or tinned copper wire
Insulation:PVC
Outer Sheath:Speacial PVC : Black, Blue
Cores colour: Core Identification
3 core:Black,Light Blue and Brown Red, Yellow and Blue

Feature:
Excellent resistant to moisture, abrasion, grace, oil.
Longer Flex Life
Excellent mechanical & electrical propertise.
Standard: IEC 60227,  BS 6500, DIN VDE 0281, IS 694



Technical Data
Operating tem.: -20°c to max.+80°C
Nominal voltage: 1100 V
Test voltage:3000 V
Min.bending radius:6 x cable diameter
Flame propagation:Flame retardant test as per IEC 60332-1

FLEXIBLE CABLES
CONDUCTOR		INSULATION		SHEATH
Nominal    Area	Nos. & Dia. of wire	Nominal  Thickness	Nominal  Core Dia.	Nominal  Thickness			OVERALL   DIA
mm2	Nos. / mm	mm	mm	2 core	3 core	4 core	2 core	3 core	4 core
1.5	30/0.25	0.6	2.9	0.9	0.9	1	7.6	8.1	9
2.5	50/0.25	0.7	3.5	1	1	1	9	9.6	10.5
4	56/0.30	0.8	4.3	1	1	1	10.6	11.3	12.4
6	84/0.30	0.8	5.1	1.15	1.15	1.4	12.6	13.4	15.2
10	140/0.30	1	6.6	1.4	1.4	1.4	18.8	17	22.2
16	126/0.40	1	8	1.4	1.4	1.4	18.8	20.1	22.2
25	196/0.40	1.2	10	2	2	2	24	25.6	28.2
35	276/0.4	1.2	11.1	2	2	2	26.3	28	31
50	396/0.4	1.4	13.4	2	2	2	30.9	33	36.5
70	360/0.5	1.4	15.1	2	2.2	2.4	34.2	37	41
95	485/0.5	1.6	17.9	2.2	2.4	2.4	40.2	43.5	47.8
