Structure
Copper: flexible copper wire or tinned copper wire
Insulation:PVC
Outer Sheath: Speacial PVC : Black, Blue
Cores colour: Core Identification
3 core:Black, Light Blue and Brown Red, Yellow and Blue
4 core:Black, Light Blue, Brown, Yellow with Green core/ Green with Yellow core

Features
   Good insulation properties when submerged in winter
   Quality backed by 40 years experience in cable industry
   Excellent resistant to moisture, abrasion, grace, oil
   Longer Flex Life
   Excellent mechanical & electrical properties







Standard: IEC 60227,  BS 6500, DIN VDE 0281, IS 694





Application
submersible Pump cable is a specialized product to be used for submersible pumps in a deep well.
The area of installation is  physically  restrictive, and the environment is very hostile.





Technical Data
Operating tem.:-20°c to max.+80°C
Nominal voltage:1100 V
Test voltage:3000 V
Min. bending radius:6 x cable diameter
Flame propagation:Flame retardant test as per IEC 60332-1

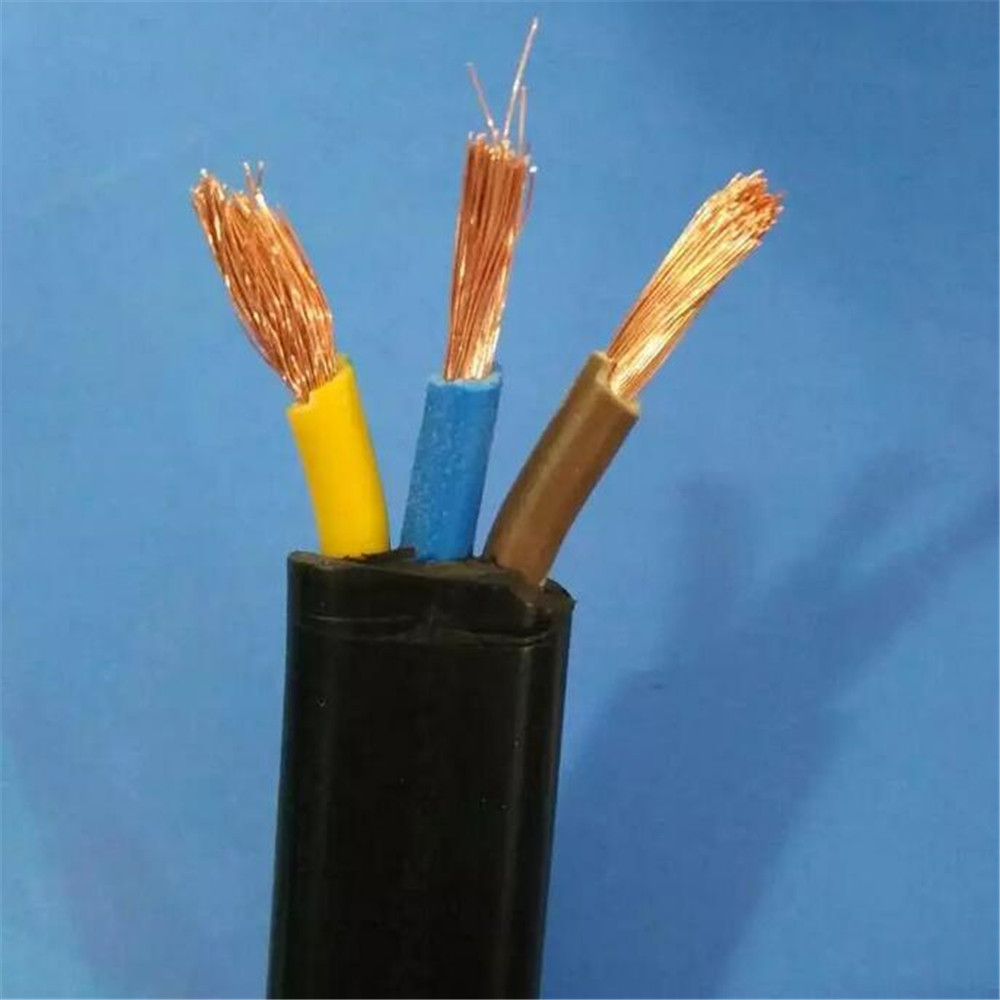

Flat Jacketed Submersible Pump Cables Without Ground
CONDUCTOR  SIZE  (AWG)	NO OF  CONDUCTOR	Nos & Dia.  of  Wire	Ground  Conductor  Size (AWG)	CORE DIA.  (MM)	NOMINAL  SHETH  THICKNESS  (MM)	CABLE DIA.  (MM)
14	3	41 X 0.254	14	3.85	1.15	18.00 x6.50
12	3	65 X 0.254	12	4.5	1.15	21.00 x7.60
10	3	105 X 0.254	10	5.3	1.15	24.30 x7.90
8	3	168 X 0.254	10	6.5	1.4	29.70 x9.90
6	3	266 X 0.254	8	8	2	36.00 x11.80
4	3	420 X 0.254	8	10.1	2	45.10 x14.70
2	3	665 X 0.254	6	11.3	2.2	50.10 x16.20
1	3	817 X 0.254	6	13.6	2.2	58.10 x19.00
1/0	3	1045 X 0.254	6	15.6	2.2	58.10 x19.00
2/0	3	1330 X 0.254	6	18	2.2	66.50 x21.50
