PVC/RUBBER AWG Pump Cables
|
Product Name:
PVC/RUBBER AWG Pump Cables
Number :
|
Product Description:
Application
For continuous use in deep well to supply power to submersible pumps down to depths.
Contraction
Class C Flexible, bare copper
Insulation : PVC (Polyvinyl Chloride)
Sheath : PVC (Polyvinyl Chloride)
Colour Code :
Black - Yellow - Red (Without Ground)
Black - Yellow - Red - Green (With Ground)
Features
Meets the requirement
UL - 83 IEC 60245, DIN VDE 0282 PART 810, BS 6007 & BS 6899
600 volts, 90° C Dry & Wet
Designed for heavy duty use
Cut, tear and abrasion resistant
Exceptional long term performance
Excellent resistance to oils, acids, chemicals and ozone
Excellent impact and weather resistance
Excellent electrical properities
Temperature range -40° to 90°
ROHS compliance (lead free)

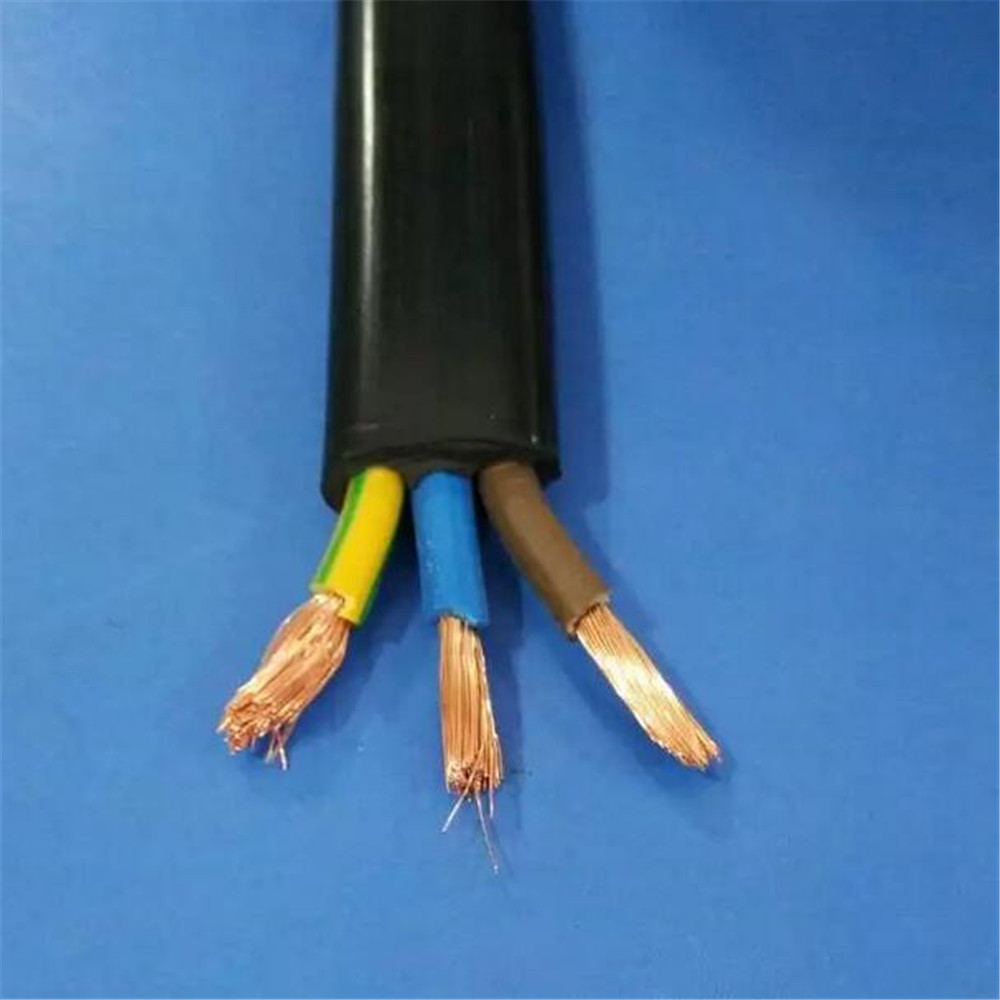

Flat submersible 600 V pump cable suitable for use within deep well fresh or salt water submersible pumps. Flat Jacketed Submersible Pump Cables Without Ground | |||||
CONDUCTOR SIZE (AWG) |
NO OF CONDUCTOR |
NOS OF DIA. OF WIRE |
CORE DIA. (MM) |
NOMINAL SHETH THICKNESS (MM) |
CABLE DIA. |
14 | 3 | 41 x 0.254 | 3.85 | 1.15 | 14.60 x 6.40 |
12 | 3 | 65 x 0.254 | 4.5 | 1.15 | 16.80 x 7.40 |
10 | 3 | 105 x 0.254 | 5.3 | 1.15 | 18.70 x 7.90 |
8 | 3 | 168 x 0.254 | 6.5 | 1.4 | 23.70 x 9.90 |
6 | 3 | 226 x 0.254 | 8 | 1.4 | 28.00 x11.40 |
4 | 3 | 420 x 0.254 | 10.1 | 2 | 35.50 x14.70 |
2 | 3 | 665 x 0.254 | 11.3 | 2 | 39.50 x16.20 |
1 | 3 | 817 x 0.254 | 13.6 | 2.2 | 45.50 x18.30 |
1/0 | 3 | 1045 x 0.254 | 13.6 | 2.2 | 45.50 x18.30 |
2/0 | 3 | 1330 x 0.254 | 16.6 | 2.2 | 51.00 x20.00 |
3/0 | 3 | 1672 x 0.254 | 18 | 2.4 | 60.00 x23.50 |
4/0 | 3 | 2116 x 0.254 | 19.8 | 2.65 | 65.00 x25.00 |
