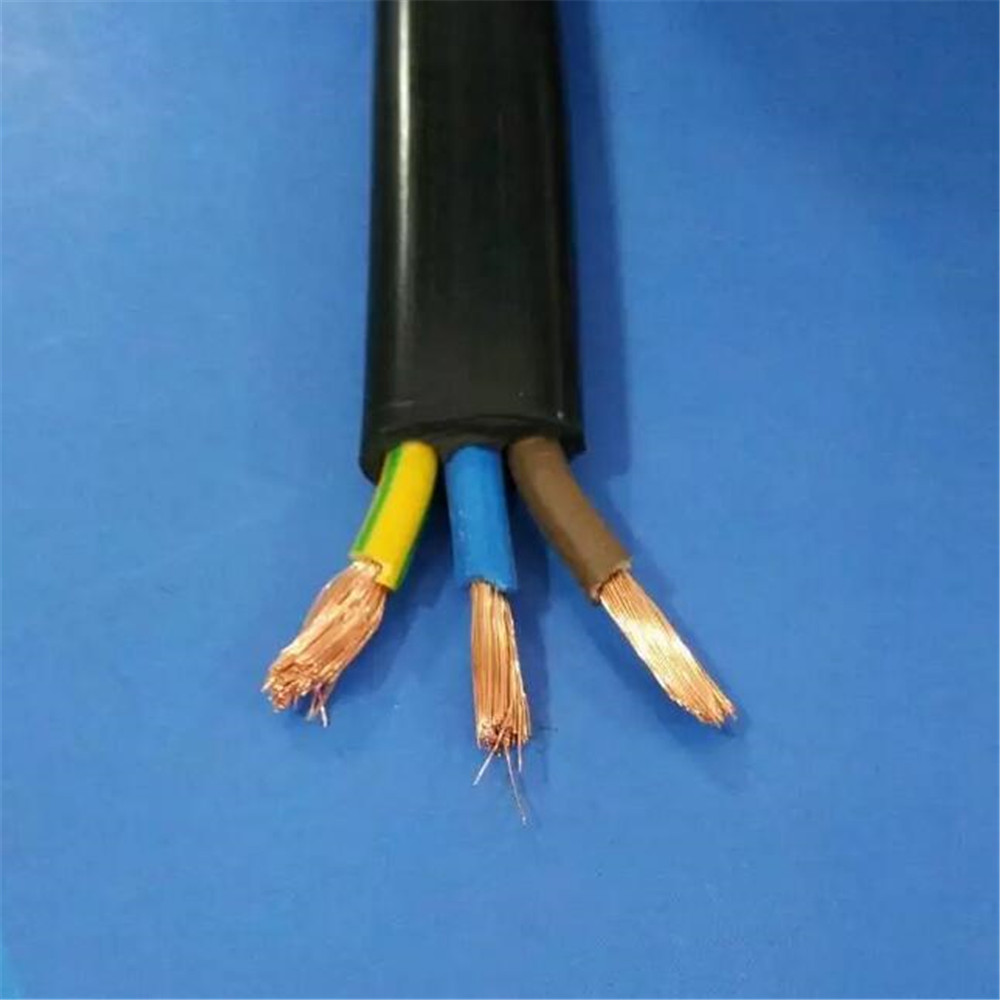

JHS Electric Submersible Pump Extension Cable

Product Name:

JHS Electric Submersible Pump Extension Cable

Number :

Product Description:

Application:

For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.
Submersible Pump cables is a specialized product to be used for submersible pumps in a deep well.
The area of installation is physically restrictive, and the environment is very hostile. Jainson is designed and
manufactured keeping in mind these factors to achieve the highest possible degree of reliability

Feature :
Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, chemicals, ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties.
Temperature range -40° to +90°

Standards:DIN VDE 0282 PART 810, IEC 245,BS 6007, BS 6899.

Construction:
Conductor:Plain annealed flexible copper
Insulation:EPR
Sheath/Jacket:PCP Or Synthetic Rubber (Oil resistant & flame retardant)
Core Colours:
3core:Brown, Blue & Green / Yellow
4core:Brown, Blue, Black & Green / Yellow

4CORE ROUND CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS)
Conductor		Insulation		Sheath		Conductor Resistance at 20℃ (max)
Nominal Area	No. & Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dia
Nominal Area	No. & Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dia
1.5	22/0.30	0.8	3.25	1.5	10.8	12.1
2.5	36/0.30	0.9	3.84	1.65	12.5	7.41
4	56/0.30	1	4.5	1.65	14.1	4.95
6	85/0.30	1	5.3	1.65	16	3.3
10	140/0.30	1	6.5	2	20.35	1.91
16	226/0.30	1	8	2	23.4	1.21
25	354/0.30	1.2	10.1	2.2	28.8	0.78
35	495/0.30	1.2	11.5	2.2	31.5	0.554
50	703/0.30	1.4	13.6	2.3	37.3	0.386
70	440/0.30	1.4	15.3	2.6	42.2	0.272
95	475/0.50	1.6	18	2.65	48.8	0.206
