Product Name:

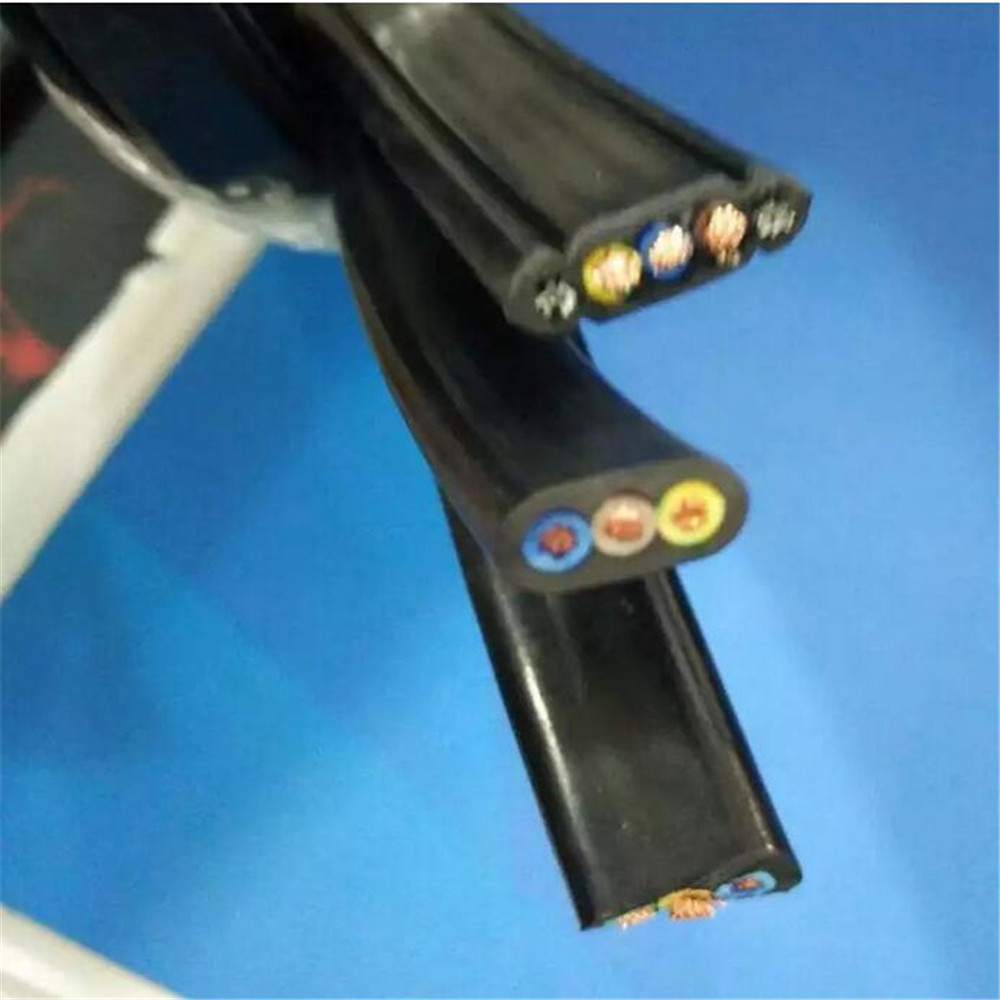

flat flexible electrical cables and wires

Number :

Product Description:

Copper: flexible copper wire or tinned copper wire

Insulation:PVC

Outer Sheath: Speacial PVC : Black, Blue

Cores colour: Core Identification

3 core:Black, Light Blue and Brown Red, Yellow and Blue

4 core:Black, Light Blue, Brown, Yellow with Green Line/ Green with Yellow Line

Features

Good insulation properties when submerged in winter

Quality backed by 40 years experience in cable industry

Excellent resistant to moisture, abrasion, grace, oil

Longer Flex Life

Excellent mechanical & electrical properties

Standard: IEC 60227, BS 6500, DIN VDE 0281, IS 694

Application

submersible Pump cable is a specialized product to be used for submersible pumps in a deep well.
The area of installation is physically restrictive, and the environment is very hostile.

Technical Data

Operating tem.: -20°c to max.+80°C

Nominal voltage: 1100 V

Test voltage: 3000 V

Min. bending radius: 6 x cable diameter

Flame propagation: Flame retardant test as per IEC 60332-1

PVC Flat - 3 core
Conductor		Insulation		Sheath			Current Rating at 40℃
Nominal Area	No. & Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dimensions
Nominal Area	No. & Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Thickness	Width
mm2	No./mm	mm	mm	mm	mm	mm	Amps.
1.5	22/0.30	0.8	3.25	1.15	6	12.8	14
2.5	36/0.30	0.9	3.84	1.15	6.4	14.6	18
4	56/0.30	1	4.5	1.15	7.4	16.8	26
6	85/0.30	1	5.3	1.15	7.9	18.7	31
10	140/0.30	1	6.5	1.4	9.9	23.7	42
16	226/0.30	1	8	1.4	11.4	28	57
25	354/0.30	1.2	10.1	2	14.7	35.5	72
35	495/0.30	1.2	11.3	2	16.2	39.5	90
50	703/0.30	1.4	13.6	2.2	18.3	45.5	115
70	440/0.45	1.4	15.3	2.2	20	51	143
95	475/0.50	1.6	18	2.4	23.5	60	165
