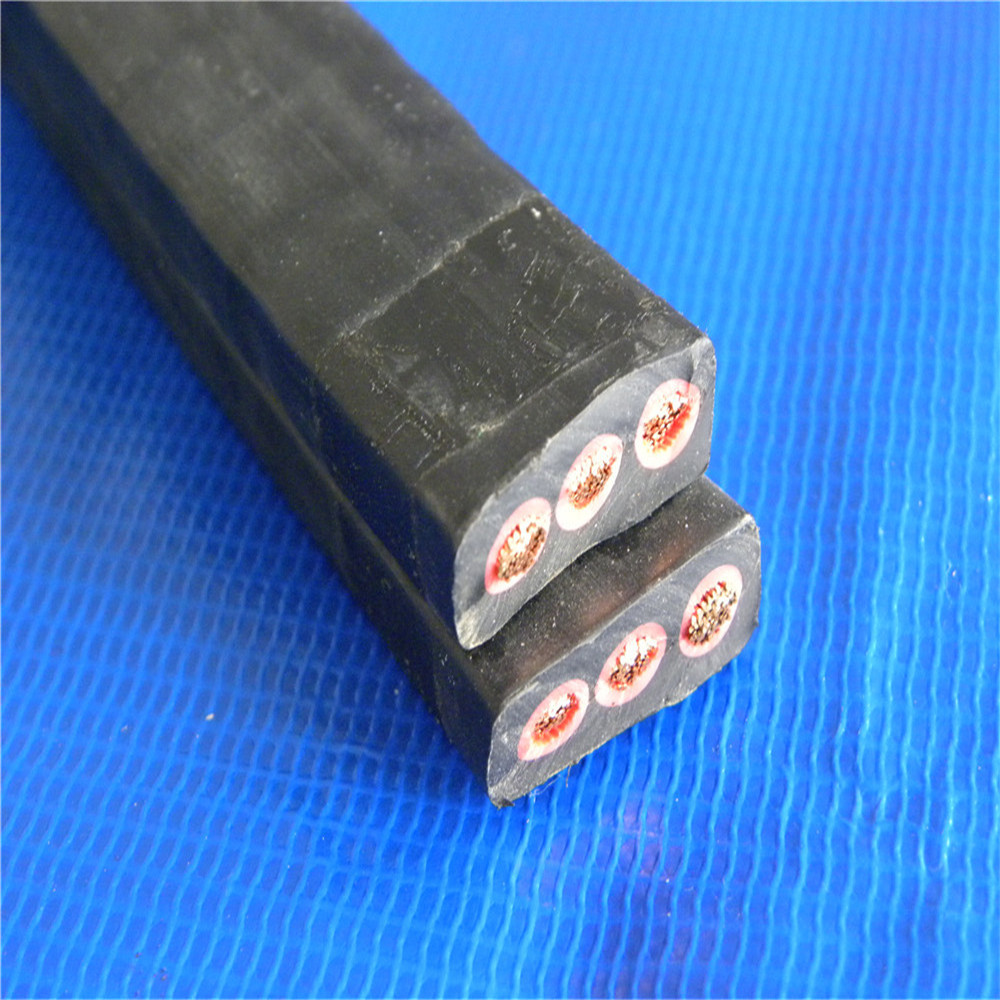

water resistant flat cable for pump systems

Product Name:

water resistant flat cable for pump systems

Number :

Product Description:

Structure
Copper: flexible copper wire or tinned copper wire
Insulation:PVC
Outer Sheath: Speacial PVC : Black, Blue
Cores colour: Core Identification
3 core:Black, Light Blue and Brown Red, Yellow and Blue
4 core:Black, Light Blue, Brown, Yellow with Green core/ Green with Yellow core

Features
Good insulation properties when submerged in winter
   Quality backed by 40 years experience in cable industry
   Excellent resistant to moisture, abrasion, grace, oil
   Longer Flex Life
   Excellent mechanical & electrical properties

Standard: IEC 60227, BS 6500, DIN VDE 0281, IS 694

Application
submersible Pump cable is a specialized product to be used for submersible pumps in a deep well.
The area of installation is physically restrictive, and the environment is very hostile.

Technical Data
Operating tem.:-20°c to max.+80°C
Nominal voltage:1100 V
Test voltage:3000 V
Min. bending radius:6 x cable diameter
Flame propagation:Flame retardant test as per IEC 60332-1

FLAT CABLE USED FOR SUBMERSIBLE PUMPS IN boreholes
Conductor		Insulation		Sheath			Current Rating at 40℃
Nominal Area	No. & Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dimensions
Nominal Area	No. & Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Thickness	Width
mm2	No./mm	mm	mm	mm	mm	mm	Amps.
1.5	22/0.30	0.8	3.25	1.3	6	15.8	14
2.5	36/0.30	0.9	3.84	1.3	6.5	18	18
4	56/0.30	1	4.5	1.45	7.6	21	26
6	84/0.30	1	5.3	1.5	7.9	24.3	31
10	140/0.30	1	6.5	1.8	9.9	29.7	42
16	224/0.30	1	8	1.95	11.8	36	57
25	350/0.30	1.2	10.1	2	14.7	45.1	72
35	490/0.30	1.2	11.5	2	16.2	50.1	90
50	703/0.30	1.4	13.6	2.2	18.3	58.1	115
70	988/0.30	1.4	15.3	2.2	20	66.5	143
95	1349/0.30	1.6	18	2.4	23.5	77.3	165
