 Stranded Automotive Equipment Wire Hookup Cable

Application:

Suitable where PVC insulated cables become brittle due to high temperature variations.

Silicone insulated single cores are preferably used in the metallurgical industry, steel works, hot rolling mills, coking plants,
foundries etc.  Insulation consists of silicone rubber.

It is resistant to vegetable and animal fat, many types of oil and diluted acids.  No decomposition occurs when exposed to
alcohol, alkaline solutions, etc.

The insulation is resistant to oxygen and ozone.  Should the cable burn, an insulation silicone dioxide layer will remain on the
conductor to render it short circuit proof.





Construction:

·Fine tinned copper strands

·Strands to VDE-0295 Class-5, IEC 60228 Cl-5

·Silicone core insulation

·Cores to VDE-0293 colors on chart



Technical:

·Working voltage: 300/500 volts

·Test voltage: 2000 volts

·Bending Radius: 15 x Ø

·Temp range: -50º C to +180º C

·Short time temp up to +220º C

·Flame retardant: IEC 60332.1

·Insulation resistance: 20 MΩ x km

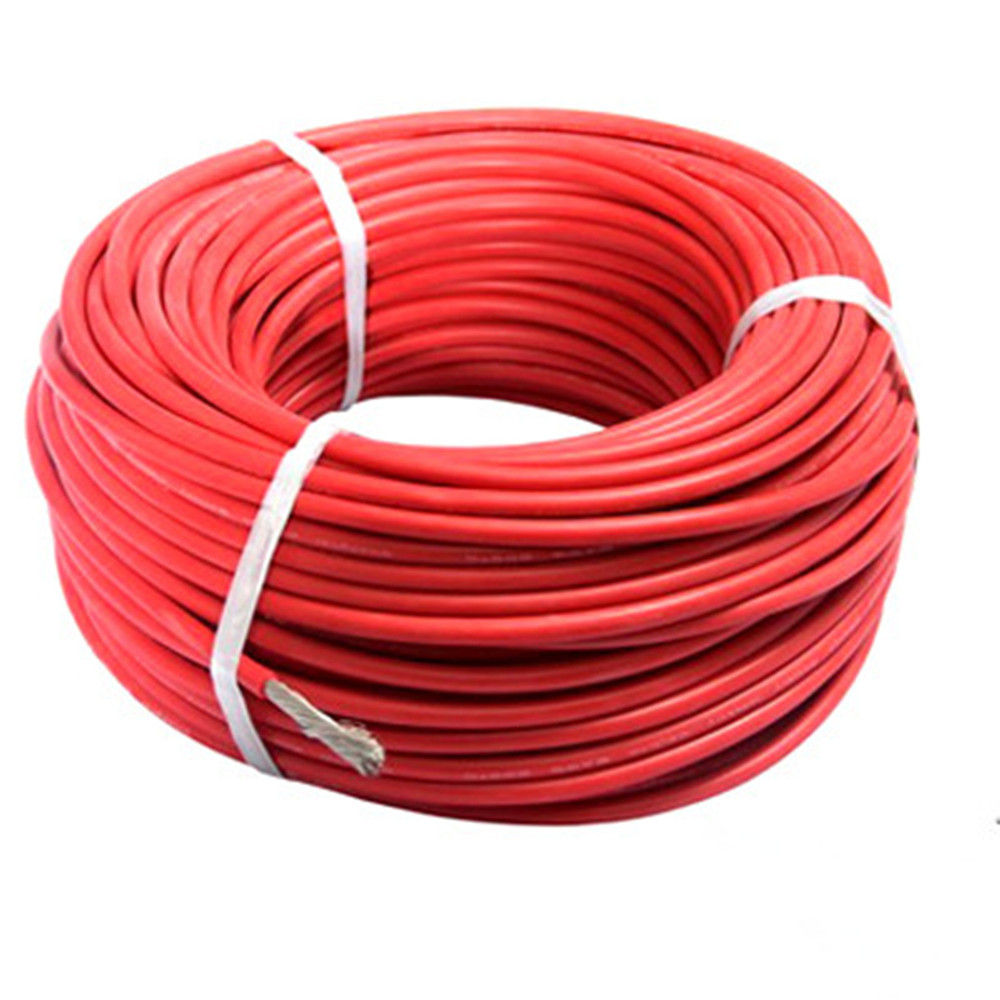

Silicone Single Core Stranded Cable
AWG	No. of Cores	Conductor cross  section	Nominal  OD	Copper  weight	Gross  Weight
		mm2	mm	kg/km	kg/km
24	1	0.25	1.9	2.4	5.5
20	1	0.5	2.1	4.8	8.6
18	1	0.75	2.4	7.2	11.8
17	1	1	2.5	9.6	13.5
16	1	1.5	2.8	14.4	18.5
14	1	2.5	3.4	24	30
12	1	4	4.2	38	47.3
10	1	6	5.2	58	71.1
8	1	10	7.1	96	119.4
6	1	16	8.4	154	187.7
4	1	25	10.3	240	289.6
2	1	35	11.6	336	398.3
1	1	50	13.9	480	559.7
2/0	1	70	16	672	765.8
3/0	1	95	18.4	912	1031.5
4/0	1	120	20	1152	1284.6
