Product Name:

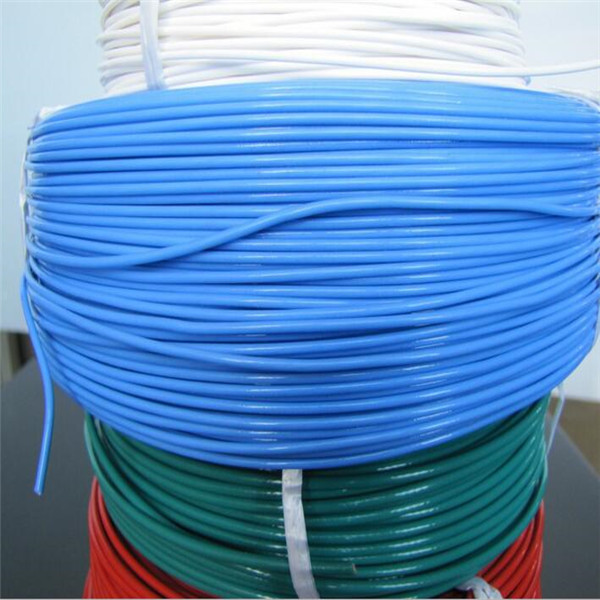

Multi-Stranded Wire Hook up Wire DIY Wire Electrical Cable Cord
Number :
 |
Application
Suitable where PVC insulated cables become brittle due to high temperature variations.
Silicone insulated single cores are preferably used in the metallurgical industry, steel works, hot rolling mills,
coking plants, foundries etc.
Applications can include the internal wiring of equipment, appliances, control cabinets, ceramics and foundries where
high temperatures occur. Insulation consists of silicone rubber. It is resistant to vegetable and animal fat, many types of
oil and diluted acids. No decomposition occurs when exposed to alcohol, alkaline solutions, etc.
The insulation is resistant to oxygen and ozone. Should the cable burn, an insulation silicone dioxide layer will remain on
the conductor to render it short circuit proof. Additional mechanical protection due to the glass fibre braid.
Technical Information
Conductor:Fine strands of tinned copper wire
Insulation:Silicone rubber (available in various colours)
Braiding:Glass fibre braid
Stranding:According to VDE 0295 class 5, IEC 60228
Voltage:
Working:300/500V
Test:2000V
Temperature Range:
Flexing:-60°C to + 180°C
Temporarily:to +200°C
Bending Radius:
Flexing:15 x Ø
Static:7.5 x Ø
| Silicone Single Core Stranded Cable | |||||
| AWG | No. of Cores | Conductor cross section | Nominal OD | Copper weight | Gross Weight |
| mm2 | mm | kg/km | kg/km | ||
| 24 | 1 | 0.25 | 1.9 | 2.4 | 5.5 |
| 20 | 1 | 0.5 | 2.1 | 4.8 | 8.6 |
| 18 | 1 | 0.75 | 2.4 | 7.2 | 11.8 |
| 17 | 1 | 1 | 2.5 | 9.6 | 13.5 |
| 16 | 1 | 1.5 | 2.8 | 14.4 | 18.5 |
| 14 | 1 | 2.5 | 3.4 | 24 | 30 |
| 12 | 1 | 4 | 4.2 | 38 | 47.3 |
| 10 | 1 | 6 | 5.2 | 58 | 71.1 |
| 8 | 1 | 10 | 7.1 | 96 | 119.4 |
| 6 | 1 | 16 | 8.4 | 154 | 187.7 |
| 4 | 1 | 25 | 10.3 | 240 | 289.6 |
| 2 | 1 | 35 | 11.6 | 336 | 398.3 |
| 1 | 1 | 50 | 13.9 | 480 | 559.7 |
| 2/0 | 1 | 70 | 16 | 672 | 765.8 |
| 3/0 | 1 | 95 | 18.4 | 912 | 1031.5 |
| 4/0 | 1 | 120 | 20 | 1152 | 1284.6 |
