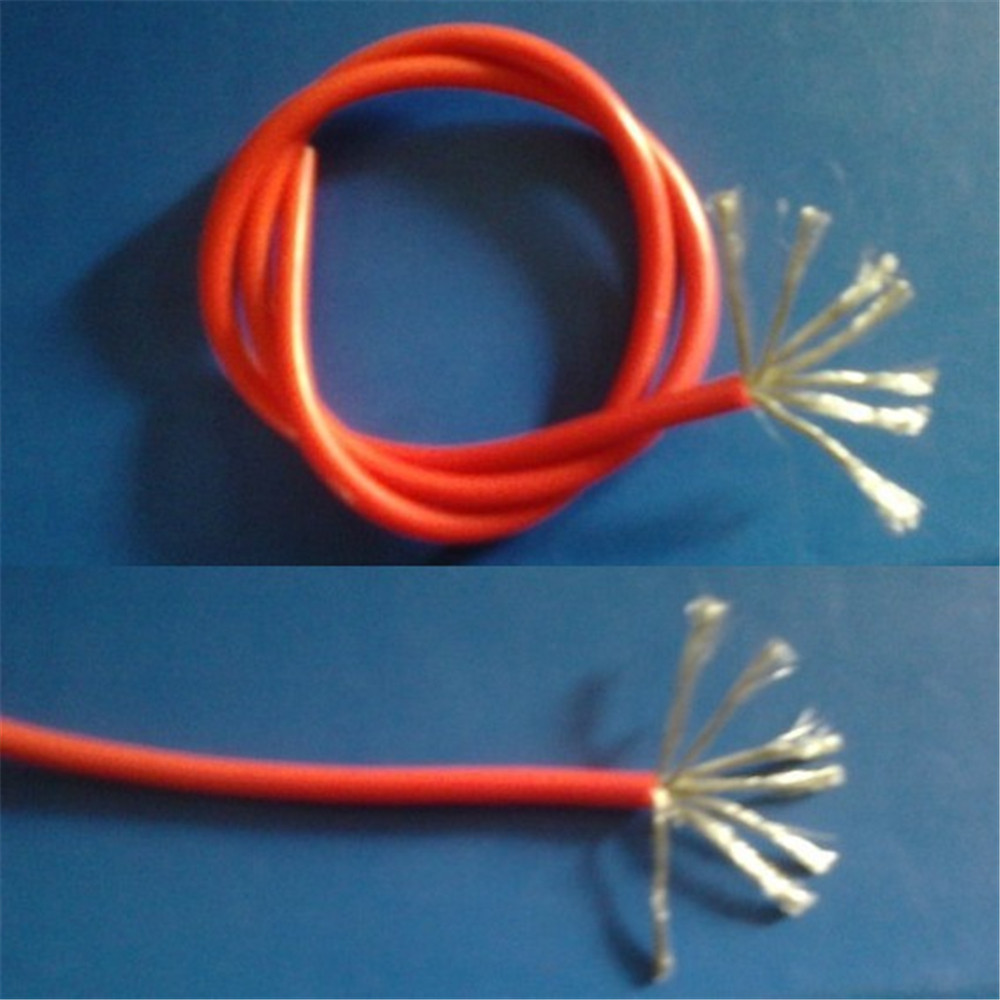

Flexible Silicone Wire RC Cable UL

Product Name:

Flexible Silicone Wire RC Cable UL

Number :

Product Description:

Flexible Silicone Wire RC Cable UL

Application:

Suitable where PVC insulated cables become brittle due to high temperature variations.

Silicone insulated single cores are preferably used in the metallurgical industry, steel works, hot rolling mills, coking plants, foundries etc. Insulation consists of silicone rubber.

It is resistant to vegetable and animal fat, many types of oil and diluted acids. No decomposition occurs when exposed to alcohol, alkaline solutions, etc.

The insulation is resistant to oxygen and ozone. Should the cable burn, an insulation silicone dioxide layer will remain on the conductor to render it short circuit proof.

Construction:

·Fine tinned copper strands

·Strands to VDE-0295 Class-5, IEC 60228 Cl-5

·Silicone core insulation

·Cores to VDE-0293 colors on chart

Technical:

·Working voltage: 300/500 volts

·Test voltage: 2000 volts

·Bending Radius: 15 x Ø

·Temp range: -50º C to +180º C

·Short time temp up to +220º C

·Flame retardant: IEC 60332.1

·Insulation resistance: 20 MΩ x km

spec of structure and technical parameters（common）：
Nominal area(mm2)	Core construction	Nominal insulation thickness	Nominal OD	Maximum DC Resistance at 20℃	packing length
（mm2）	Strand/Diameter (mm)	（mm）	（mm）	（Ω/km）	（m）
0.2	1×0.50	0.65	1.8	95	500
0.2	12×0.15	0.6	1.8	95	500
0.3	16×0.15	0.6	1.85	71.2	500
0.4	23×0.15	0.5	1.85	49.6	200
0.5	28×0.15	0.6	2.2	40.1	200
0.75	42×0.15	0.7	2.6	26.7	200
1	32×0.20	0.7	2.8	20	200
1.5	48×0.20	0.7	3.1	13.7	100
2.5	49×0.25	0.8	3.7	8.21	100
4	56×0.30	0.8	4.3	5.09	100
6	84×0.30	0.8	5.2	3.39	100
10	84×0.40	1	6.8	1.95	100
16	126×0.40	1.2	8.4	1.24	100
25	196×0.40	1.4	10.4	0.795	100
Noted:Other sizes and colours available on request
