SIHF cable silicone power cord electrical cable

Product Name:

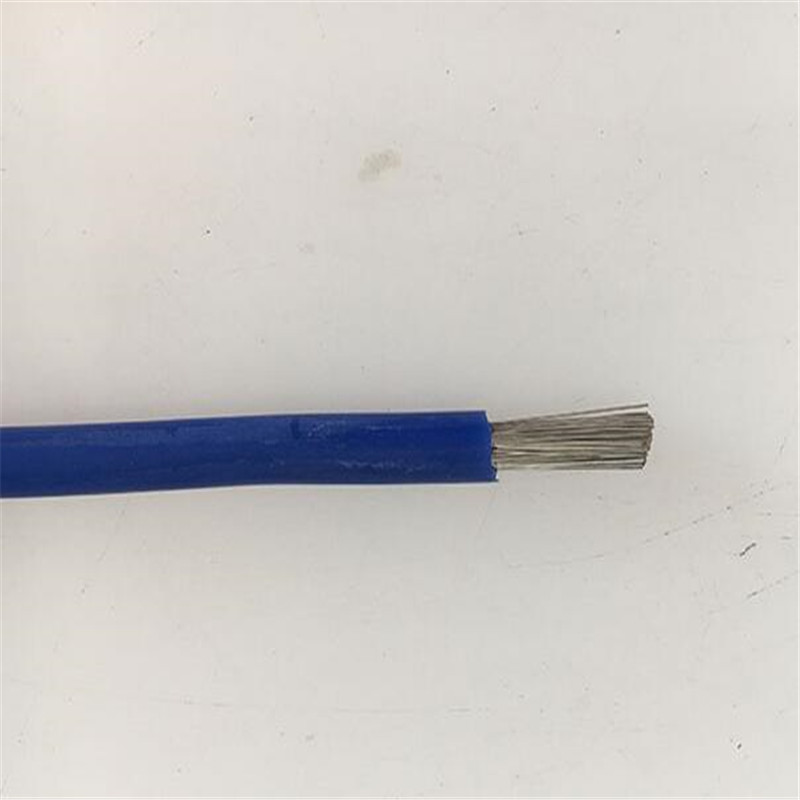

SIHF cable silicone power cord electrical cable

Number :

Product Description:

Application

Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes. They are heat-resistant for
permanent temperature up to +180°C,

for short time operation up to +220°C. The good performance of the environmental resistant properties means that silicone cables can
be used at temperatures down to -60°C.

Cable structure

Conductor: Flexible tinned copper conductors to DIN VDE 0295 , BS 6360 and IEC 60228 Insulation: Silicone rubber.

Insulation: Silicone rubber.

Characteristics of cable

Continuous working temperature :

-60°C to +180°C. Max: at +220°C.

Minimum bending radius 7.5*OD

Resistance to sunlight.

Halogen-free.

Does not spread flame.

Working Voltage:300/500 V

Test Voltage:2000 V

Cable Size	Conductor structure	SIF		SIF / GL
(mm2)	(No./mm)	OD(mm)	Weight of cable (KG/KM)	OD(mm)	Weight of cable (KG/KM)
0.5	16/0.20	2.1	8	2.6	12
0.75	24/0.20	2.4	11	2.9	16
1	32/0.20	2.5	14	3	18
1.5	30/0.25	2.8	19	3.3	23
2.5	50/0.25	3.4	30	3.9	35
4	56/0.30	4.2	48	4.7	53
6	84/0.30	5.2	71	5.7	77
10	80/0.40	7	120	7.5	129
16	126/0.40	8.4	180	8.9	198
25	196/0.40	10.3	290	10.8	302
35	270/0.40	11.6	400	12.1	413
50	396/0.40	13.9	550	14.4	578
70	360/0.50	16	750	16.5	815
95	475/0.50	18.4	1000	18.9	1100
