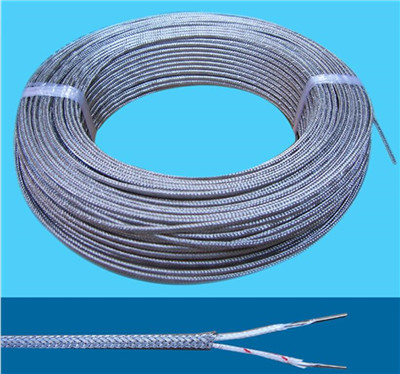

tin or nickel plated copper conductor fibreglass braided silicone cable
 |
Product Name:
tin or nickel plated copper conductor fibreglass braided silicone cable
Number :
 |
Product Description:
tin or nickel plated copper conductor fibreglass braided silicone cable
Cable structure
Cable structure
Conductor: Flexible copper conductors according to IEC 228 class 5. Available in bare, tin or nickel plated copper.
Insulation: Silicone rubber.
Sheath: Silicone rubber.
Braid: Fibreglass braid
Working Voltage : 300/ 500 V. Test Voltage : 2000 V.
Characteristics of cable
Continuous working temperature :
-60°C to +200°C. Peaks at +220°C
Minimum bending radius approx 15 x Cable Ø
Resistance to sunlight.
Halogen-free.
Does not spread flame.
Application
Used to power electrical devices located in areas with high continuous temperatures.
Suitable for wiring in metal industry
Lighting equipment
Electrical approved devicesrequiring a non - flammable cable.
Hot-rolling mills, coking plants, foundries.
Resistant to: Resistant to vegetable and animal fat, many types of oil and diluted acids.
|
Cable
Size (mm2)
|
Conductor
structure (No./mm)
|
Cable OD
(mm)
|
Copper
weight (KG/KM)
|
Cable
Weight (KG/KM)
|
| 2 x 1,5 | 30 x 0,26 | 8,2 | 69 | 103 |
| 3 x 1,5 | 30 x 0,26 | 8,6 | 85 | 128 |
| 4 x 1,5 | 30 x 0,26 | 9,4 | 103 | 158 |
| 5 x 1,5 | 30 x 0,26 | 10,2 | 127 | 188 |
| 7 x 1,5 | 30 x 0,26 | 11,2 | 162 | 250 |
| 12 x 1,5 | 30 x 0,26 | 15,4 | 253 | 433 |
| 3 x 2,5 | 50 x 0,26 | 10,3 | 127 | 189 |
| 4 x 2,5 | 50 x 0,26 | 11,4 | 153 | 249 |
| 5 x 2,5 | 50 x 0,26 | 12,4 | 184 | 293 |
